Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB140.030-1

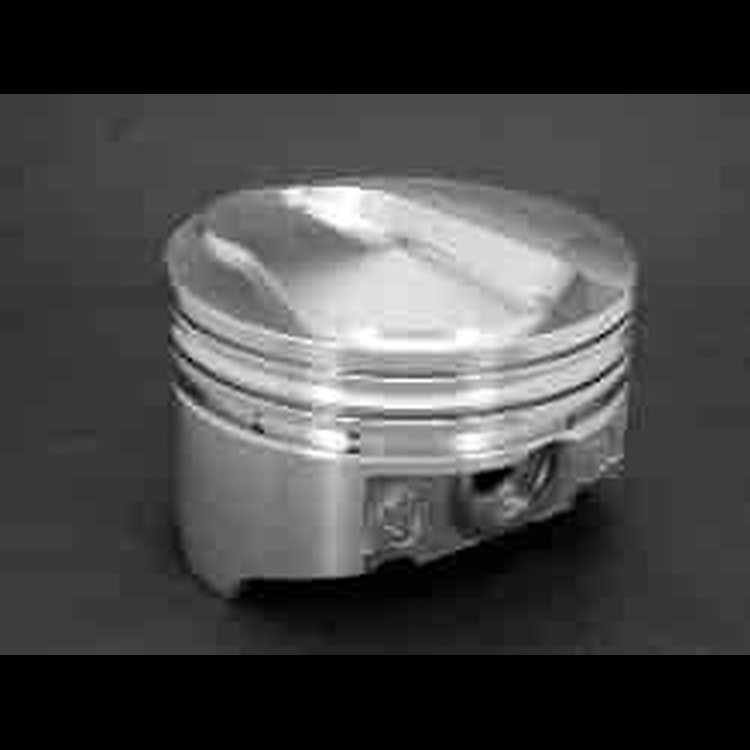

Chevy 400ci Hypereutectic Piston Solid Dome .100"
$10752
Ships on 09/09/2026
Lowest Price GuaranteeChevy 400ciDome Top Pistons Use w/5.700'' Connecting Rods
- Chevy 400ci Hypereutectic Piston
- Solid Dome .100''
- 4.155'' Bore (+.030'')
- Use w/5.700'' Connecting Rod & 3.750'' Crank Stroke
- Comp. Ratio: 13.6/58cc; 12.8/62cc; 12.5/64cc; 10.9/76cc
- 1/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.155'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 5.700'
- Deck Height: 9.025'
- Compression Height: 1.433'
- Pin Size: 0.9272'
- Pin Location: Centered
- Flat Top: -.5cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.280' Depth / 2.168' Diameter
- Exhaust Valve Relief: 0.280' Depth / 2.168' Diameter
- Top Landing Height: 0.275'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 583/145
- Compression Ratio: 13.6:1 w/58cc Heads; 12.8:1 w/62cc Heads; 12.5:1 w/64cc; 10.9:1 w/76cc Heads
100% CNC Machined Pistons
New high silicon alloys and diamond tooling have give Keith Black designers the material and equipment for performance breakthroughs in engine design. KB piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, .072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design.
Show More
Features:
- 390 Hypereutectic alloy with 16% Silicon
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
- Sold in Sets (except when noted as 1 piston per package)
Click here for reference guide to piston top designs
Part TypePiston
Product LineUEM Pistons KB Signature Series Hypereutectic Small Block Chevy Pistons
BrandUNITED ENGINE MACHINE
Package Height6.0
Package Width6.0
Package Length6.0
Weight0.78 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSKB140.030
Package Qty1
Package TypeEA
