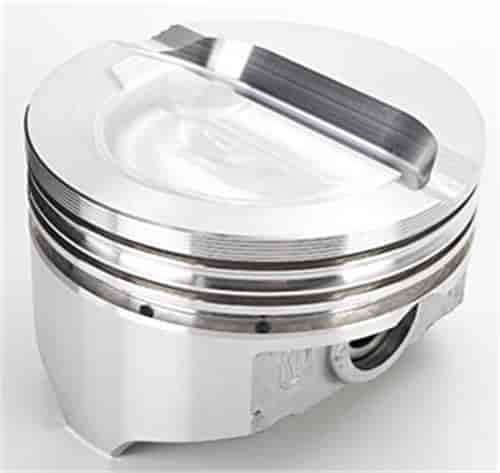

Hypereutectic Dish Top Pistons for Small Block Chevy 400 ci +.030 in. Overbore
InfoVehicle Info Needed
UNITED ENGINE MACHINEPART NUMBER: 648-KB147.030

Hypereutectic Dish Top Pistons for Small Block Chevy 400 ci +.030 in. Overbore

$46842
ShippingShips on 11/19/2026
Lowest PriceLowest Price Guarantee

Items You Need

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90

Chevy 400ci
  • Dish Top Pistons
  • Use w/5.700'' Connecting Rods
    • Hypereutectic Pistons
    • Small Block Chevy 400 ci
    • Dish Top
    • 4.155 in. Bore (+.030)
    • Use w/5.700 in. Connecting Rod & 3.750 in. Crank Stroke
    • Comp. Ratio: 10.8/58 cc; 10.4/62 cc; 10.2/64cc; 9.1/76 cc
    • Set of 8

      Technical Specs:
    • Alloy: Hypereutectic 390
    • Bore: 4.155'
    • Crankshaft Stroke: 3.750'
    • Connecting Rod Length: 5.700'
    • Deck Height: 9.025'
    • Compression Height: 1.433'
    • Pin Size: 0.9272'
    • Pin Location: Centered
    • Flat Top: -18cc 2 Symmetrical Valve Reliefs
    • Intake Valve Relief: 0.280' Depth / 2.168' Diameter
    • Exhaust Valve Relief: 0.280' Depth / 2.168' Diameter
    • Top Landing Height: 0.265'
    • Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
    • Gram Weight: 543/145
    • Compression Ratio: 10.8:1 w/58cc Heads; 10.4:1 w/62cc Heads; 10.2:1 w/64cc; 9.1:1 w/76cc Heads

    100% CNC Machined Pistons

    New high silicon alloys and diamond tooling have give Keith Black designers the material and equipment for performance breakthroughs in engine design. KB piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, .072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design.

    Show More

    Features:

    • 390 Hypereutectic alloy with 16% Silicon
    • Fully machined crowns and valve reliefs
    • Drilled oil drain backs
    • Full floating wrist pins
    • Triple wound spiral locks
    • Reflective alloy allows 2% power increase
    • Quench dome technology minimizes deterioration
    • Zero deck quench designs
    • Sold in Sets (except when noted as 1 piston per package)


      Click here for reference guide to piston top designs
    Part TypePiston
    Product LineUEM Pistons KB Signature Series Hypereutectic Small Block Chevy Pistons
    BrandUNITED ENGINE MACHINE
    Package Height3.9
    Package Width9.4
    Package Length18.1
    Weight13.52 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberKB147.030
    Package Qty1
    Package TypeEA
