Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB147.STD

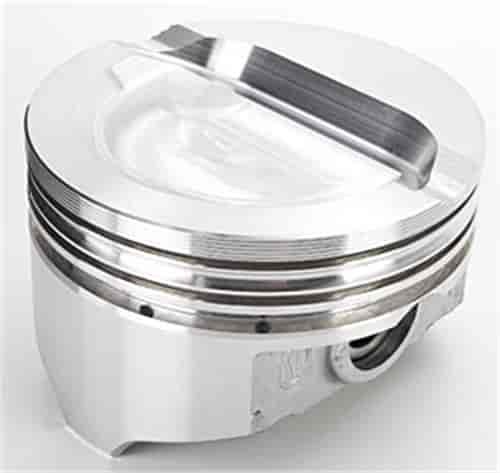

Hypereutectic Dish Top Pistons for Small Block Chevy 400 ci
$46842
Ships on 09/08/2026
Lowest Price GuaranteeChevy 400ciDish Top Pistons Use w/5.700'' Connecting Rods
Hypereutectic PistonsSmall Block Chevy 400 ci Dish Top 4.125 in. Bore (Standard) Use w/5.700 in. Connecting Rod & 3.750 in. Crank Stroke Comp. Ratio: 10.8/58 cc; 10.4/62 cc; 10.2/64cc; 9.1/76 cc Set of 8
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.125 in.
- Crankshaft Stroke: 3.750 in.
- Connecting Rod Length: 5.700 in.
- Deck Height: 9.025 in.
- Compression Height: 1.433 in.
- Pin Size: 0.9272 in.
- Pin Location: Centered
- Flat Top: -18cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.280 in. Depth / 2.168 in. Diameter
- Exhaust Valve Relief: 0.280 in. Depth / 2.168 in. Diameter
- Top Landing Height: 0.265 in.
- Ring Grooves: 5/64 in. Top; 5/64 in. Middle; 3/16 in. Bottom
- Gram Weight: 543/145
- Compression Ratio: 10.8:1 w/58 cc Heads; 10.4:1 w/62 cc Heads; 10.2:1 w/64cc; 9.1:1 w/76cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.4
Package Width10.7
Package Length19.3
Weight13.49 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB147.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
