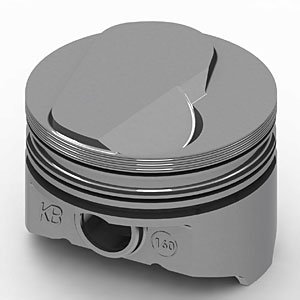

Chevy 396/402ci Hypereutectic Pistons Hollow Dome .180"

Name: Chevy 396/402ci Hypereutectic Pistons Hollow Dome .180"
Brand: UNITED ENGINE MACHINE
SKU: 648-KB160.STD
Price: 467.82 USD
Availability: InStock

^$467⁸²

Ships on 09/10/2026

Lowest Price Guarantee

Chevy 396/402ci

Dome Top Pistons

Hollow Dome .180''
4.125'' Bore (+.030'' 396; Standard 402)
Use w/6.135'' Connecting Rod & 3.760'' Crank Stroke
Comp. Ratio: 10.5/96.5cc; 9.6/105cc; 9.4/108cc; 8.5/119cc
8/pkg

Notes: For a 396ci engine, use part number 648-KB160.STD. This will be a 396ci .030 over bore. Compression ratio will be 10.3 on 96.5 head (Closed chamber head).
Technical Specs:
Alloy: Hypereutectic 390
Bore: 4.125'
Crankshaft Stroke: 3.760'
Connecting Rod Length: 6.135'
Deck Height: 9.800'
Compression Height: 1.765'
Pin Size: 0.990'
Pin Location: Centered
Hollow Dome Top: .180' 17cc IV (Closed Chamber Head)
Intake Valve Relief: 0.266' Depth / 2.310' Diameter
Exhaust Valve Relief: N/A
Top Landing Height: 0.311'
Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
Gram Weight: 630/158
Compression Ratio: 10.5:1 w/96.5cc Heads; 9.6:1 w/105cc Heads; 9.4:1 w/108cc; 8.5:1 w/119cc Heads

Part TypePiston

BrandUNITED ENGINE MACHINE

Package Height3.9

Package Width9.3

Package Length18.1

Weight15.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberKB160.STD

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
