Chevy 383ciDish Top Pistons Use w/6.000'' Connecting Rods Use with Chevy 350ci Block and 400ci Crankshaft

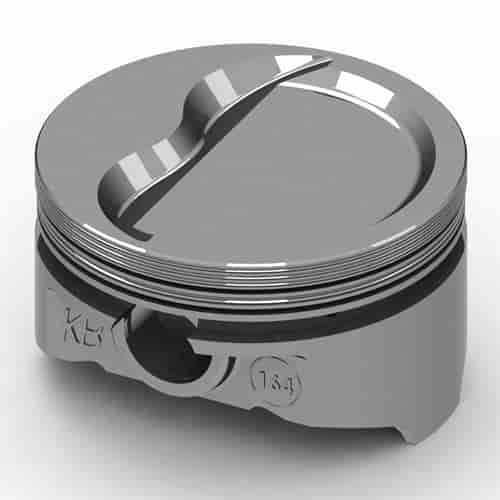

Chevy 383ci Hypereutectic Pistons Dish Top 4.000'' Bore (Standard) Use w/6.000'' Connecting Rod & 3.750'' Crank Stroke Comp. Ratio: 10.2/58cc; 9.8/62cc; 9.7/64cc; 8.6/76cc 8/pkg
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.000'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.000'
- Deck Height: 9.025'
- Compression Height: 1.130'
- Pin Size: 0.9272'
- Pin Location: Centered
- Dish D-Dup: -19cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.280' Depth / 2.168' Diameter
- Exhaust Valve Relief: 0.280' Depth / 2.168' Diameter
- Top Landing Height: 0.265'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 411/107
- Compression Ratio: 10.2:1 w/58cc Heads; 9.8:1 w/62cc Heads; 8.6:1 w/64cc; 8.7:1 w/76cc Heads
- Use with 350ci block and 400ci crankshaft. This is a stroked 350ci chevy combination.
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB164.STD
Package Qty1
Package TypeEA
