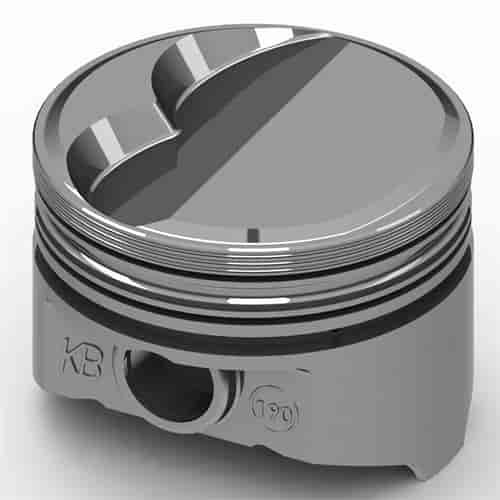

Chrysler 360ciDome Top Pistons
Chrysler 360ci Hypereutectic PistonsSolid Dome Top 4.030'' Bore (+.030'') Use w/6.123" Connecting Rod & 3.580" Stroke Comp. Ratio: 11.8/62cc; 11.5/64cc; 10.9/68cc; 10.5/72cc 8/pkg
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.030'
- Crankshaft Stroke: 3.580'
- Connecting Rod Length: 6.123'
- Deck Height: 9.599'
- Compression Height: 1.675'
- Pin Size: .9842'
- Pin Location: Centered
- Dome Top: -1.2cc 2V Relief
- Intake Valve Relief: 0.366' Depth / 2.200' Diameter
- Exhaust Valve Relief: 0.366' Depth / 2.200' Diameter
- Top Landing Height: 0.275'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 524/132
- Compression Ratio: 11.8/62cc; 11.5/64cc; 10.9/68cc; 10.5/72cc
- Notes: Pistons may protrude on 1992 and up Magnum truck blocks.
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height6.0
Package Width6.0
Package Length6.0
Weight2.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB190.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
