Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

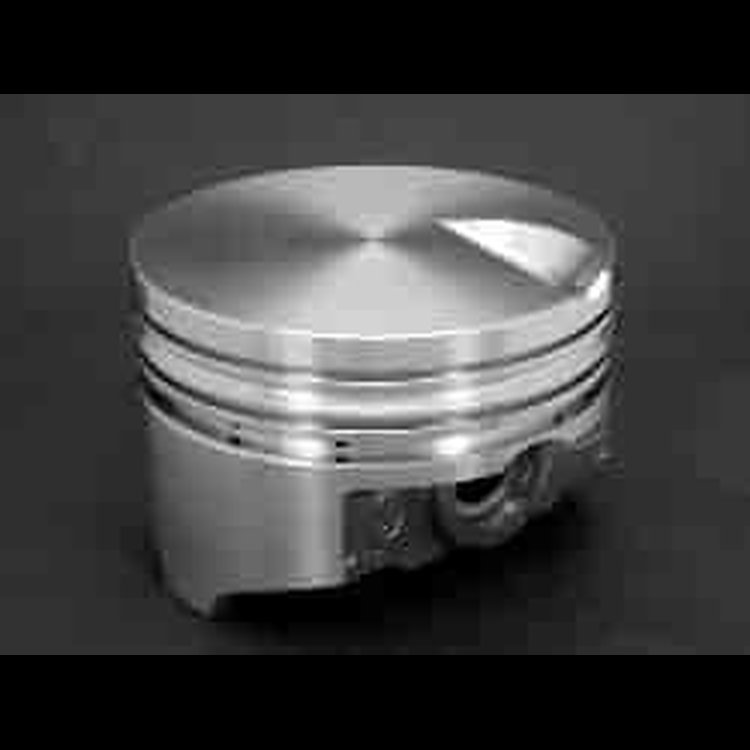

Chevy 454ciFlat Top Pistons
- Chevy 454ci Hypereutectic Pistons
- Flat Top
- 4.280'' Bore (+.030'')
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 9.7/96.5cc; 9.0/105cc; 8.9/108cc; 8.2/119cc
- 8/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.280'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990'
- Pin Location: Centered
- Flat Top: -3cc IV
- Intake Valve Relief: 0.266' Depth / 2.310' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.308'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 696/158
- Compression Ratio: 9.7:1 w/96.5cc Heads; 9.0:1 w/105cc Heads; 8.9:1 w/108cc; 8.2:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.5
Package Width4.5
Package Length4.8
Weight2.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB202.030
Package Qty1
Package TypeEA
No Questions
No Reviews
