Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB206.STD

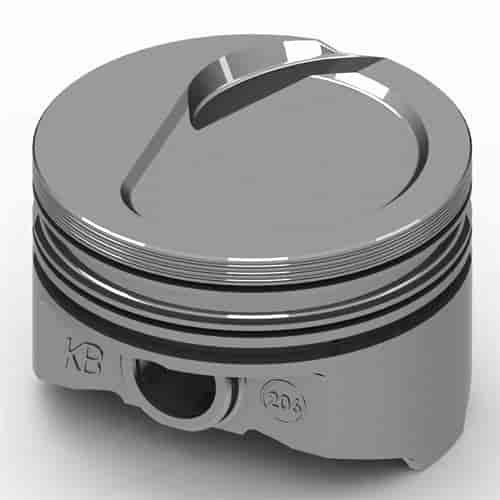

Ford 460ci Hypereutectic Pistons Dish Top
$55152
Ships on 09/04/2026
Lowest Price GuaranteeFord 460ciDish Top Pistons
Ford 460ci Hypereutectic Pistons Dish Top 4.360'' Bore (Standard) Use w/6.605'' Connecting Rod & 3.850'' Crank Stroke Comp. Ratio: 10.5/76cc; 9.9/82cc; 9.2/91cc; 8.8/97cc 8/pkg
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.360' (Standard)
- Crankshaft Stroke: 3.850'
- Connecting Rod Length: 6.605'
- Deck Height: 10.320'
- Compression Height: 1.772'
- Pin Size: 1.040'
- Pin Location: Centered
- Dish Top: 15cc D-Cup
- Intake Valve Relief: 0.250' Depth / 2.450' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.300'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 750/166
- Compression Ratio: 11.8:1 w/76cc Heads; 11.0:1 w/82cc Heads; 10.2:1 w/91cc; 9.7:1 w/97cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.7
Package Width9.2
Package Length18.3
Weight16.77 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB206.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
