Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB218.030-1

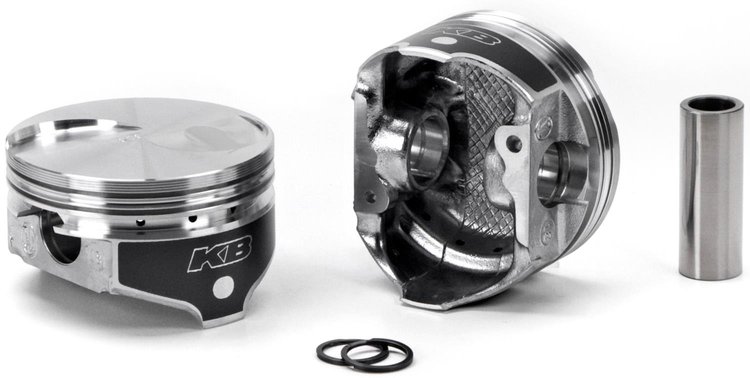

Ford 2.3L Hypereutectic Piston Flat Top
$11224
Ships on 09/10/2026
Lowest Price GuaranteeFord 2.3LFlat Top Pistons
Ford 2.3L Hypereutectic PistonFlat Top 3.780'' Bore (+.030'') Use w/5.700" Connecting Rod & 3.126" Stroke Comp. Ratio: 9.1/60cc; 8.7/64cc Sold Individually
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 3.780'
- Crankshaft Stroke: 3.126'
- Connecting Rod Length: 5.700'
- Deck Height: 8.368'
- Compression Height: 1.090'
- Pin Size: 0.927'
- Pin Location: Centered
- Flat Top: +4.5cc 2V Relief
- Intake Valve Relief: 0.155' Depth / 2.040' Diameter
- Exhaust Valve Relief: 0.155' Depth / 1.700' Diameter
- Top Landing Height: 0.207'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Compression Ratio: 9.1:1 w/60cc Heads; 8.7:1 w/64cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.1
Package Width5.2
Package Length5.3
Weight1.66 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)4.5
Compression Distance1.09 in (27.686 mm)
Top Ring Thickness1/16 in.
QuantitySold individually
Piston MaterialHypereutectic
Pin Diameter0.927 in (23.5 mm)
Oil Ring Thickness3/16 in.
Part FitmentSemi Universal
Second Ring Thickness1/16 in.
Piston StyleFlat top, with two valve reliefs
Bore3.78 in (96.012 mm)
Vendor Part NumberSKB218.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
