Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB245KTD.030

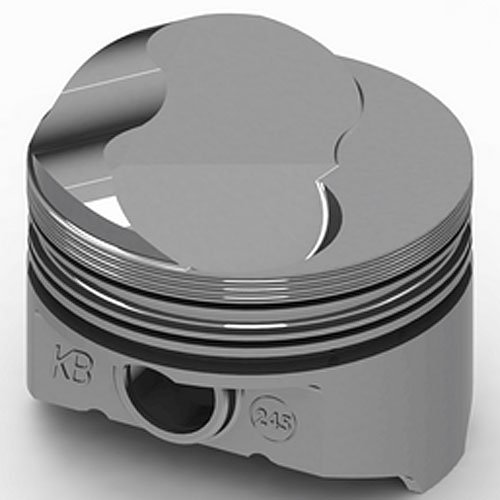

Chevy 454ci Hypereutectic Piston and Ring Kit Hollow Dome Top .500"
$55716
Ships on Sep 11, 2026
Lowest Price GuaranteeChevy 454ciDome Top Pistons
- Chevy 454ci Hypereutectic Piston and Ring Kit
- Hollow Dome Top .500''
- 4.280'' Bore (+.030'')
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 12.0/119cc
- 8/pkg
Kit Includes: - KB245.030 Pistons
- 4250BD8.035 RingsTechnical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.250'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990'
- Pin Location: Centered
- Hollow Dome Top: .500' 43cc IV (Open Chamber Head)
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 694/158
- Compression Ratio: 12.0:1 w/119cc Heads
100% CNC Machined Pistons
New high silicon alloys and diamond tooling have give Keith Black designers the material and equipment for performance breakthroughs in engine design. KB piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, .072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design.
Show More
Features:
- 390 Hypereutectic alloy with 16% Silicon
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
- Sold in Sets (except when noted as 1 piston per package)
Click here for reference guide to piston top designs
Part TypePiston
Product LineUEM Pistons KB Signature Series Hypereutectic Big Block Chevy Pistons
BrandUNITED ENGINE MACHINE
Package Height7.1
Package Width10.1
Package Length18.8
Weight17.34 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB245KTD.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
