Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB246.STD

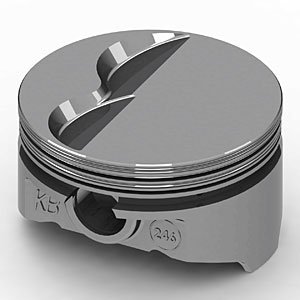

Ford 347ci Hypereutectic Pistons Flat Top
$41321
Ships on 09/04/2026
Lowest Price GuaranteeFord 347ciFlat Top Pistons Use with Ford 302 Block
- Ford 347ci Hypereutectic Pistons
- Flat Top
- 4.000'' Bore (STD)
- Use w/5.400'' Connecting Rod & 3.400'' Crank Stroke
- Comp. Ratio: 11.2/55cc; 10.5/60cc; 10.0/64cc; 9.5/69cc
- 8/pkg
Technical Specs: - For use with Ford 302 Block.
- Alloy: Hypereutectic 390
- Bore: 4.000'
- Crankshaft Stroke: 3.400'
- Connecting Rod Length: 5.400'
- Deck Height: 8.206'
- Compression Height: 1.090'
- Pin Size: 0.9272'
- Pin Location: Centered, 2.5' long. Spacer ring included.
- Flat Top: -6.5cc 2V Relief
- Intake Valve Relief: 0.266' Depth / 2.120' Diameter
- Exhaust Valve Relief: 0.254' Depth / 1.880' Diameter
- Top Landing Height: 0.240'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 415/102
- Compression Ratio: 11.2:1 w/55cc Heads; 10.5:1 w/60cc Heads; 10.0:1 w/64cc Heads; 9.5:1 w/69cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height2.5
Package Width4.2
Package Length4.7
Weight1.1 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB246.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
