Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB257.STD-1

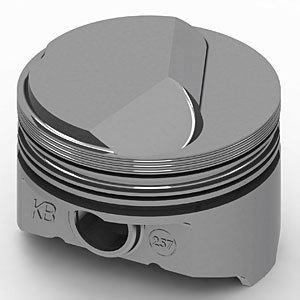

Chevy 454ci Hypereutectic Pistons Hollow Dome Top .250"
$11740
Ships Tomorrow
Lowest Price GuaranteeChevy 454ciDome Top Pistons
- Chevy 454ci Hypereutectic Pistons
- Hollow Dome Top .250''
- 4.250'' Bore (Standard)
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 10.2/119cc
- 1/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.250'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990'
- Pin Location: Centered
- Hollow Dome Top: .250' 26cc IV (Open Chamber Head)
- Intake Valve Relief: 0.266' Depth / 2.310' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.308'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 650/158
- Compression Ratio: 10.2:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.0
Package Width4.5
Package Length4.5
Weight1.87 PG
Part CategoryPerformance Parts
Vendor Part NumberSKB257.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
