Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB257.STD

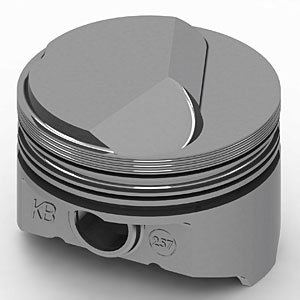

Chevy 454ci Hypereutectic Pistons Hollow Dome Top .250"
$46962
Ships on 09/09/2026
Lowest Price GuaranteeChevy 454ciDome Top Pistons
- Chevy 454ci Hypereutectic Pistons
- Hollow Dome Top .250''
- 4.250'' Bore (Standard)
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 10.2/119cc
- 8/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.250'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990'
- Pin Location: Centered
- Hollow Dome Top: .250' 26cc IV (Open Chamber Head)
- Intake Valve Relief: 0.266' Depth / 2.310' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.308'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 650/158
- Compression Ratio: 10.2:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.0
Package Width9.3
Package Length18.1
Weight15.64 PG
Part CategoryPerformance Parts
Vendor Part NumberKB257.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
