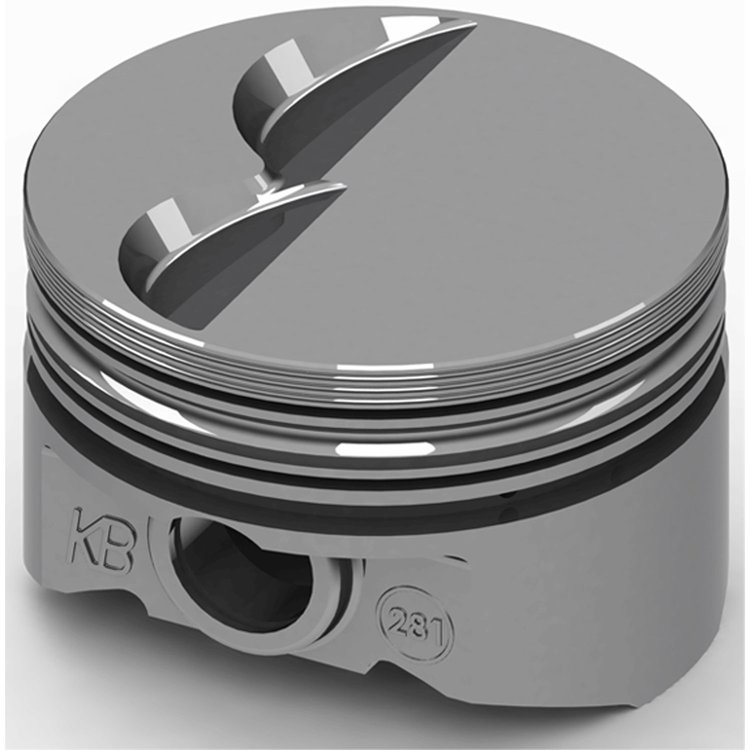

Ford 302ciFlat Top Pistons
- Ford 302ci Hypereutectic Pistons
- Flat Top
- Lightweight
- 4.000'' Bore (STD)
- Use w/5.090'' Connecting Rod & 3.000'' Crank Stroke
- Comp. Ratio: 10.0/54cc; 9.6/58cc; 9.0/64cc; 8.5/69cc
- 1/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.000'
- Crankshaft Stroke: 3.000'
- Connecting Rod Length: 5.090'
- Deck Height: 8.206'
- Compression Height: 1.608'
- Pin Size: 0.9122'
- Pin Location: Centered
- Flat Top: -6.5cc 2V Relief
- Intake Valve Relief: 0.257' Depth / 2.120' Diameter
- Exhaust Valve Relief: 0.247' Depth / 1.880' Diameter
- Top Landing Height: 0.275'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 517/107
- Compression Ratio: 10.0:1 w/54cc Heads; 9.6:1 w/58cc Heads; 9.0:1 w/64cc Heads; 8.5:1 w/69cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.0
Package Width5.2
Package Length5.3
Weight1.5 PG
Part CategoryPerformance Parts
Vendor Part NumberSKB281.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
