![Holden 5.0L 308 ci Hypereutectic Pistons Flat Top [0cc, No Valve]](https://www.jegs.com/images/mini_750/600/648/648-kb282.060.jpg)
Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB282.060

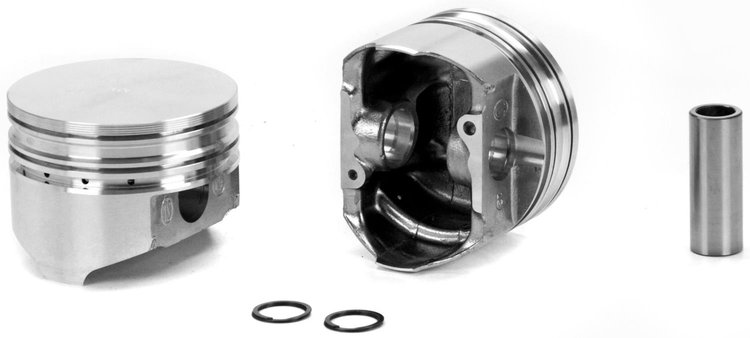

Holden 5.0L 308 ci Hypereutectic Pistons Flat Top [0cc, No Valve]
$45319
1 left in stock
Ships Today
Lowest Price GuaranteeHolden 5.0L 308 ci Flat Top Pistons
Holden 5.0L 308 ci Hypereutectic PistonsFlat Top 4.0'' Bore (+.060'') Use w/5.622" Connecting Rod & 3.062" Stroke Comp. Ratio: 10.8/76cc; 10.2/61cc; 10.0/63cc Set of 8
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.0'
- Crankshaft Stroke: 3.062'
- Connecting Rod Length: 5.622'
- Deck Height: 8.865'
- Compression Height: 1.700'
- Pin Size: 0.927'
- Pin Location: Centered
- Flat Top: 0cc, No Valve
- Top Landing Height: 0.210'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Compression Ratio: 10.8:1 w/76cc Heads; 10.2:1 w/61cc Heads;
10.0:1 w/63cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.3
Package Length18.3
Weight13.5 PG
Part CategoryPerformance Parts
Top Ring Thickness0.078 in (2 mm)
QuantitySet of 8
Piston MaterialHypereutectic
Pin Diameter0.927 in (23.5 mm)
Oil Ring Thickness3/16 in.
Part FitmentSemi Universal
Second Ring Thickness5/64
Piston StyleFlat top, with no valve reliefs
Bore4 in (101.6 mm)
Vendor Part NumberKB282.060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
