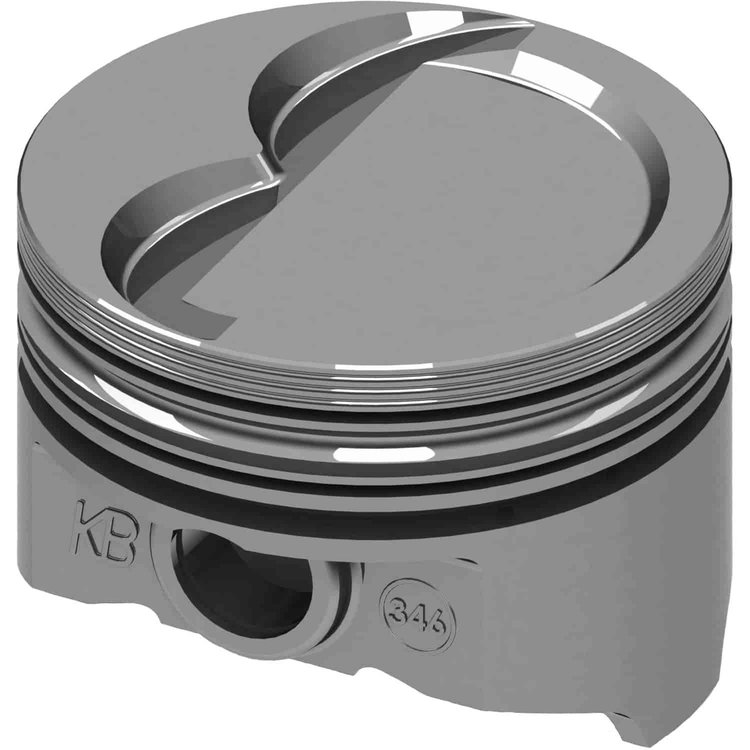

Pontiac 400ci Hypereutectic Piston D-Cup Dish 17cc +040
InfoVehicle Info Needed
UNITED ENGINE MACHINEPART NUMBER: 648-KB346.040-1

Pontiac 400ci Hypereutectic Piston D-Cup Dish 17cc +040

$12041
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Pontiac 400ci
  • Step Dish
      • Pontiac 400ci Hypereutectic Piston
    • D-Cup Dish -17cc
    • 4.160" Bore (+.040")
    • Use w/6.630'' Connecting Rod & 3.750'' Crank Stroke
    • Comp. Ratio: 9.6:1/71cc; 8.4:1/87cc; 7.8:1/96cc; 7.1:1/111cc
    • 1/pkg

      Note: Designed to work with 1967 and later 14-degree and 20-degree heads. Piston is .025" below a 10.250" deck. Check small end of rod to piston before assembly / .045" clearance per side minimum.

      Technical Specs:
    • Alloy: Hypereutectic 390 Alloy
    • Bore: 4.160'
    • Crankshaft Stroke: 3.750'
    • Connecting Rod Length: 6.630'
    • Deck Height: 10.250'
    • Compression Height: 1.710'
    • Pin Size: 0.980' x 3.000'
    • Pin Location: Centered
    • D-Cup Dish Top: -17.0cc 2 Valve Reliefs
    • Intake Valve Relief: 0.248" Depth / 2.210" Diameter
    • Exhaust Valve Relief: 0.248" Depth / 2.210" Diameter
    • Top Landing Height: 0.300'
    • Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
    • Gram Weight: 557/163
    • Compression Ratio: 9.6:1 w/71cc Combustion Chamber Heads; 8.4:1 w/87cc Combustion Chamber Heads; 7.8:1 w/96cc Combustion Chamber Heads; 7.1:1 w/111cc Combustion Chamber Heads
    Part TypePiston
    BrandUNITED ENGINE MACHINE
    Package Height5.05
    Package Width5.25
    Package Length5.3
    Weight1.81 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberSKB346.040
    Package Qty1
    Package TypeEA
