Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB405.024-1

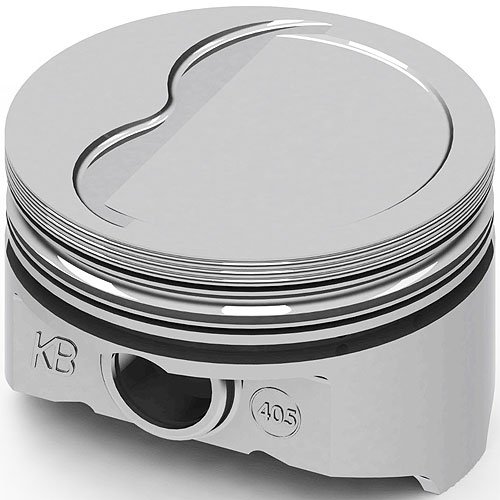

Oldsmobile 403ci Hypereutectic Piston Dish Top
$12554
Ships on 09/09/2026
Lowest Price GuaranteeOldsmobile 403ciDish Top Pistons
- Oldsmobile 403ci Hypereutectic Piston
- Dish Top
- 4.375'' Bore (+.024'')
- Use w/6.000'' Connecting Rod & 3.385'' Crank Stroke
- Comp. Ratio: 9.5/83cc; 8.5/96cc
- 1/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.375'
- Crankshaft Stroke: 3.385'
- Connecting Rod Length: 6.000'
- Deck Height: 9.312'
- Compression Height: 1.615'
- Pin Size: 0.9805'
- Pin Location: Centered
- D-Cup Dish Top: -6cc 2 Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.281'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 674/147
- Compression Ratio: 9.5:1 w/83cc Heads; 8.5:1 w/96cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.1
Package Width5.1
Package Length5.3
Weight2.02 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSKB405.024
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
