Pontiac 400ci Hypereutectic Pistons Solid Dome 10cc +030
InfoVehicle Info Needed
UNITED ENGINE MACHINEPART NUMBER: 648-KB422.030

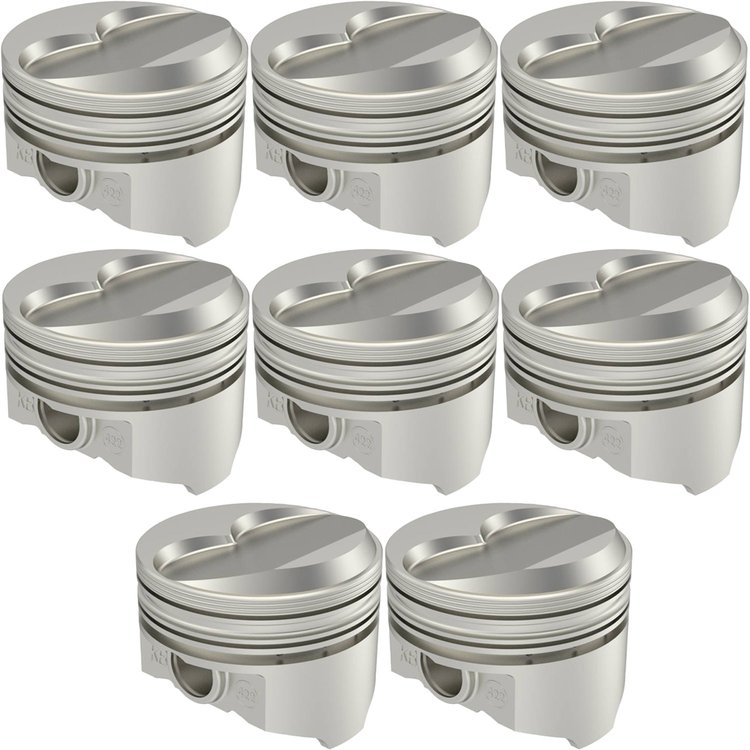

Pontiac 400ci Hypereutectic Pistons Solid Dome 10cc +030

$50216
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Pontiac 400ci
  • Solid Dome
      • Pontiac 400ci Hypereutectic Pistons
    • Solid Dome 10cc
    • 4.150" Bore (+.030'')
    • Use w/6.630'' Connecting Rod & 3.750'' Crank Stroke
    • Comp. Ratio: 9.4:1/100cc
    • 8/pkg

      Note: Designed to work with 1967 and later 14-degree heads. Piston is .025" below a 10.250" deck. Check small end of rod to piston before assembly / .045" clearance per side minimum.

      Technical Specs:
    • Alloy: Hypereutectic 390 Alloy
    • Bore: 4.150'
    • Crankshaft Stroke: 3.750'
    • Connecting Rod Length: 6.630'
    • Deck Height: 10.250'
    • Compression Height: 1.710'
    • Pin Size: 0.980' x 3.000'
    • Pin Location: Centered
    • Solid Dome Top: 10.0cc 2 Valve Reliefs
    • Intake Valve Relief: 0.239" Depth / 2.140" Diameter
    • Exhaust Valve Relief: 0.239" Depth / 2.140" Diameter
    • Top Landing Height: 0.300'
    • Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
    • Gram Weight: 582/163
    • Compression Ratio: 9.4:1 w/100cc Combustion Chamber Heads
    Part TypePiston
    BrandUNITED ENGINE MACHINE
    Package Height4.9
    Package Width9.5
    Package Length18.9
    Weight14.65 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberKB422.030
    Package Qty1
    Package TypeEA
