Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-KB422.STD-1

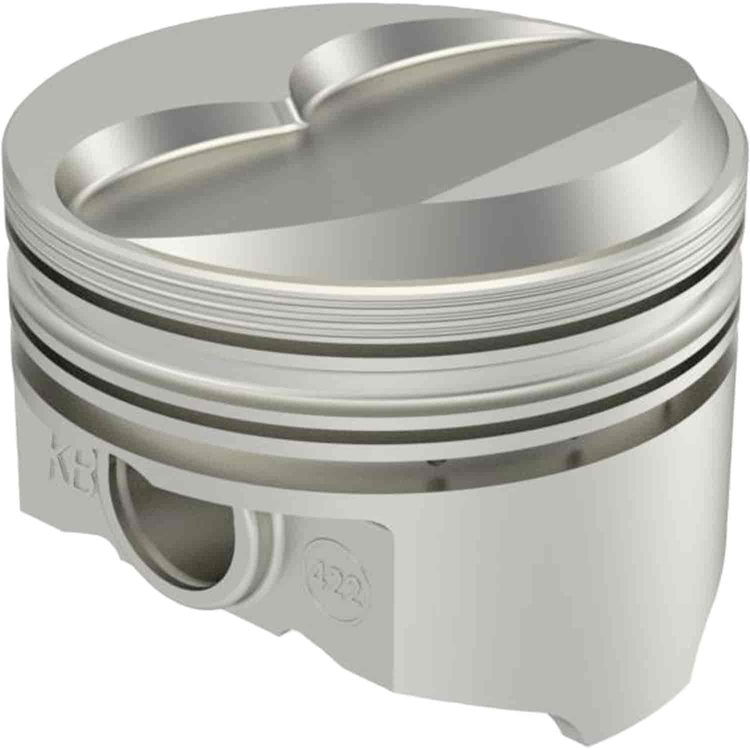

Pontiac 400ci Hypereutectic Piston Solid Dome 10cc Standard
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Pontiac 400ciSolid Dome
- Pontiac 400ci Hypereutectic Piston
- Solid Dome 10cc
- 4.120" Bore
- Use w/6.630'' Connecting Rod & 3.750'' Crank Stroke
- Comp. Ratio: 9.4:1/100cc
- 1/pkg
Note: Designed to work with 1967 and later 14-degree heads. Piston is .025" below a 10.250" deck. Check small end of rod to piston before assembly / .045" clearance per side minimum.
Technical Specs: - Alloy: Hypereutectic 390 Alloy
- Bore: 4.120'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.630'
- Deck Height: 10.250'
- Compression Height: 1.710'
- Pin Size: 0.980' x 3.000'
- Pin Location: Centered
- Solid Dome Top: 10.0cc 2 Valve Reliefs
- Intake Valve Relief: 0.239" Depth / 2.140" Diameter
- Exhaust Valve Relief: 0.239" Depth / 2.140" Diameter
- Top Landing Height: 0.300'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 582/163
- Compression Ratio: 9.4:1 w/100cc Combustion Chamber Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSKB422.STD
Package Qty1
Package TypeEA
