Product Discontinued
US GEARPART NUMBER: 963-01-486373CM

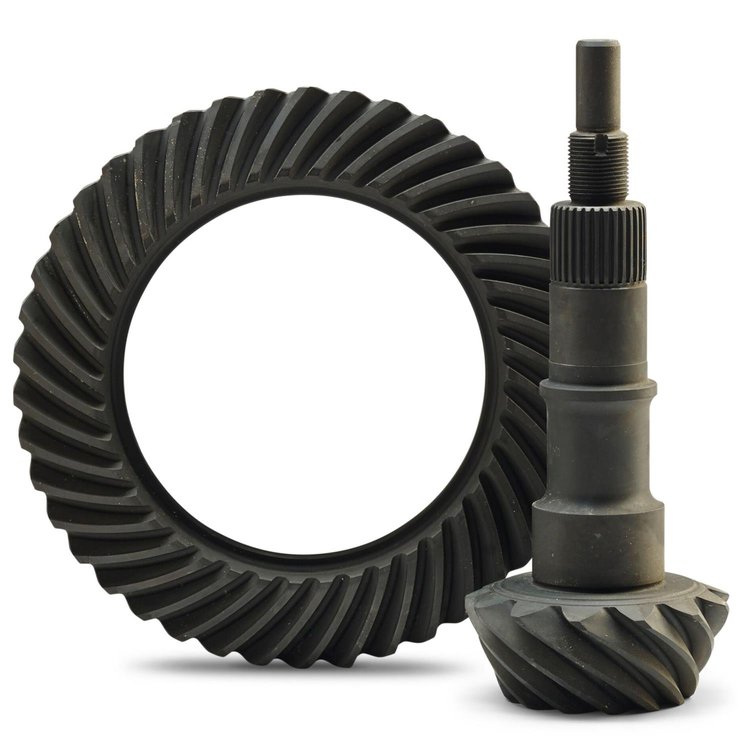

Ring & Pinion Gear Set GM 8.6" 10-Bolt 3.73 Ratio
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM 8.6"
- Ring & Pinion Gear Set
- GM 8.6" 10-Bolt
- 32-Spline
- 11-41 Tooth Count
- 3.73 Ratio
- 2010-Up Camaro SS Gen 5 V8
- Pinion Shaft Diameter: 1.875"
- Ring Gear Bolts: (10) 7/16"-20 LH
Part TypeRing and Pinion
BrandUS GEAR
Package Height5.3
Package Width11.3
Package Length15.5
Weight16.38 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Pinion Gear Teeth11
Carrier SeriesN/A
QuantitySold as a set
Pinion Spline Count32
Ring Gear Diameter8.6 in (218.4 mm)
Ring And Pinion Ratio3.73
Pinion Shaft Diameter1.875 in (47.6 mm)
Installation Kit IncludedNo
Axle TypeGM 8.6 in.
Ring Gear Bolts10
Cover Bolts10
Ring Gear Teeth41
Package Qty1
Package TypeEA
