US MOTOR WORKSPART NUMBER: 275-USEP7194M

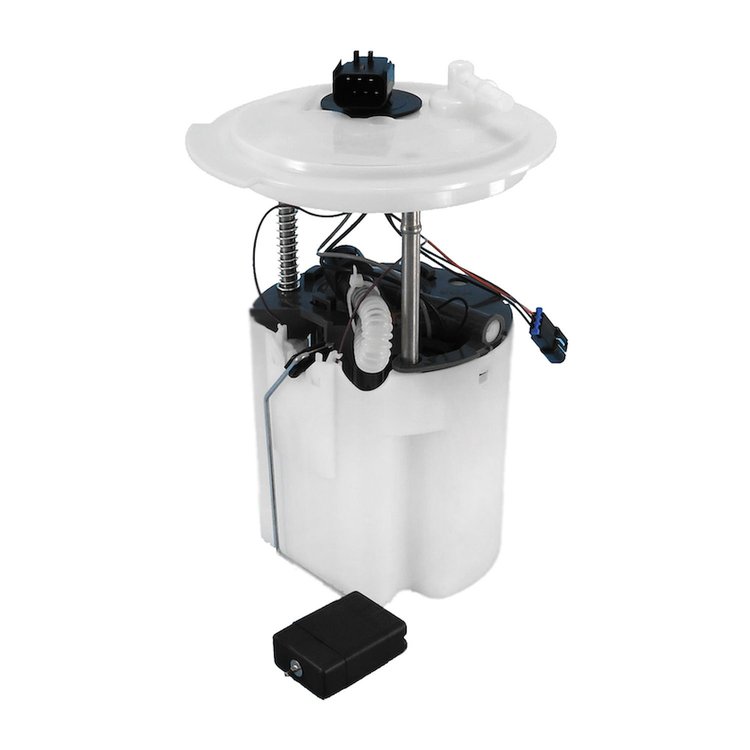

USEP7194M Fuel Pump Module Assembly
$12689$140.99You Save$14.10
1 left in stockFuel Pump Module Assembly
US Motor Works USEP7194M Features:
US Motor Works fuel modules are designed with quality in mind. All modules are designed and tested to meet or exceed original equipment specifications. Only the highest quality materials are used in the manufacture of our units.
- Each module is supplied with all the accessories necessary for proper installation. Made with modern materials that are compatible with todays fuel blends.
- Pressure Max: 105.0 PSI
- Flow Rate Min: 150.0 LPH
- Pressure Min: 95.0 PSI
- Voltage: 12.0 VDC
- Empty: 1050.0 Ohms
- Full: 70.0 Ohms
- Includes: Hardware and tank seal where applicable, Installation instructions
- Part Interchange Numbers: SP7031M, FG0784, 5101 805AC, 5101 805AB, E7194M
Part TypeFuel Pump Module Assembly
BrandUS MOTOR WORKS
Part CategoryReplacement Parts
Ohms Full70.0 Ohms
Minimum Flow Rating150.0 LPH
Ohms Empty1050.0 Ohms
Voltage12.0 VDC
Minimum Pressure95 PSI
Part FitmentDirect Fit
Maximum Pressure105 PSI
Package Qty1
