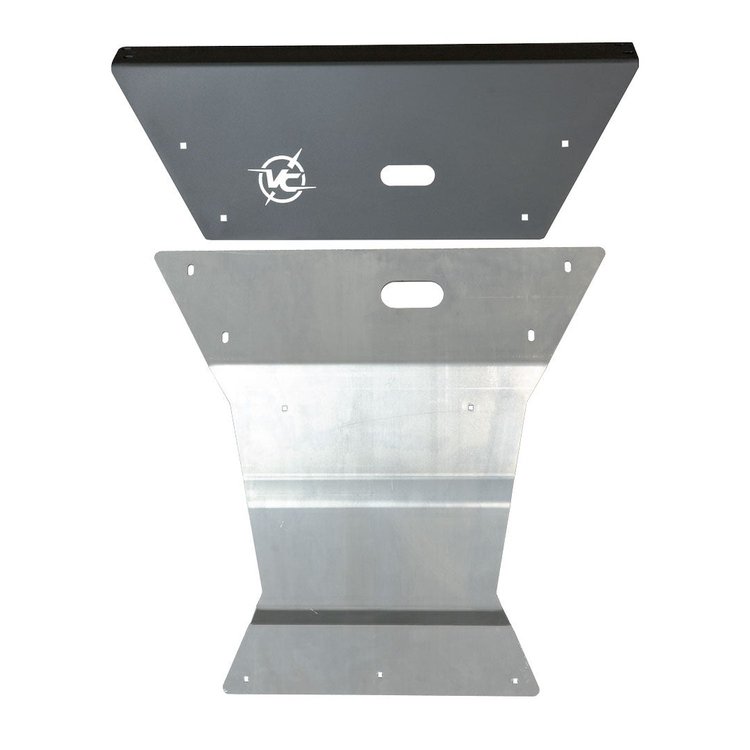

Van Compass 4102 Features:

Explore with confidence in your AWD Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4" thick 5052 Aluminum and 3/16" high strength steel. The skid system is 100% bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system. For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!

With the release of the AWD Sprinter chassis in 2023, Mercedes changed the front subframe of the Sprinter and adapted a new powertrain to fit. This skid part number is specifically fit to the AWD models with 4-cyl diesel and 9-speed auto transmission.

• 3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection
• Engine Skid Plate - 1/4" 6061 T-6 Aluminum
• All necessary hardware included
• Total installed weight 55lbs
• Attachment Type: Bolt On
• Color: Silver
• Color: Black
• Configuration: Two Piece
• Drilling Required: No
• Finish: Powder Coated
• Material: Steel
• Material: Aluminum
• Material Thickness: .188 in.
• Material Thickness: .25 in.
• Mounting Hardware Included: Yes
• Recommended Shop Labor Time: 1 hr
• Sheen Level: Matte
• Universal Or Specific Fit: Specific
• Weight: 55 lb.
