Van Compass 4106 Features:

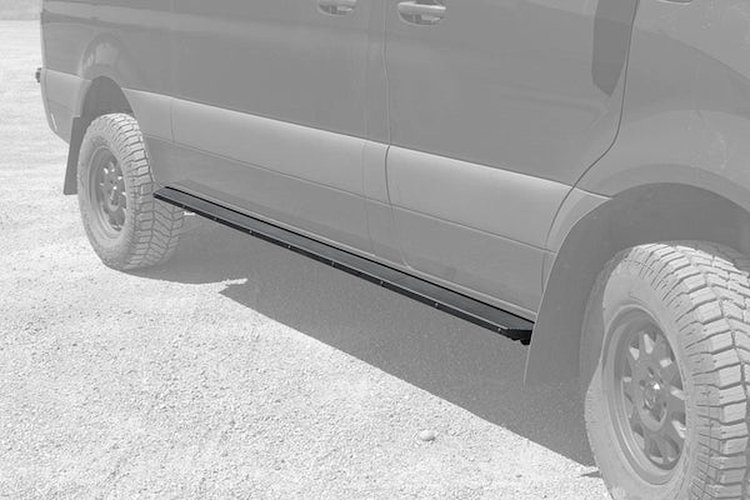

More than just a step! Add functional protection, chassis rigidity and ease of access to your 144" wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

The main step surfaces are constructed from 1/8" steel and attach to the pin. seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pin. seam and under body gussets are required for installation. Production date after 8/22/2024 will fit lifted and non-lifted.

• Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely
• Production date after 8/22/2024 will fit lifted and non-lifted
• Step Surface Width: 3
• 5-4" (van body has slight taper at front door sill) *** These ship in a very long crate, non-commercial address may be subject to additional delivery fees
• Drilling of holes at the pin. seam and under body gussets are required for installation

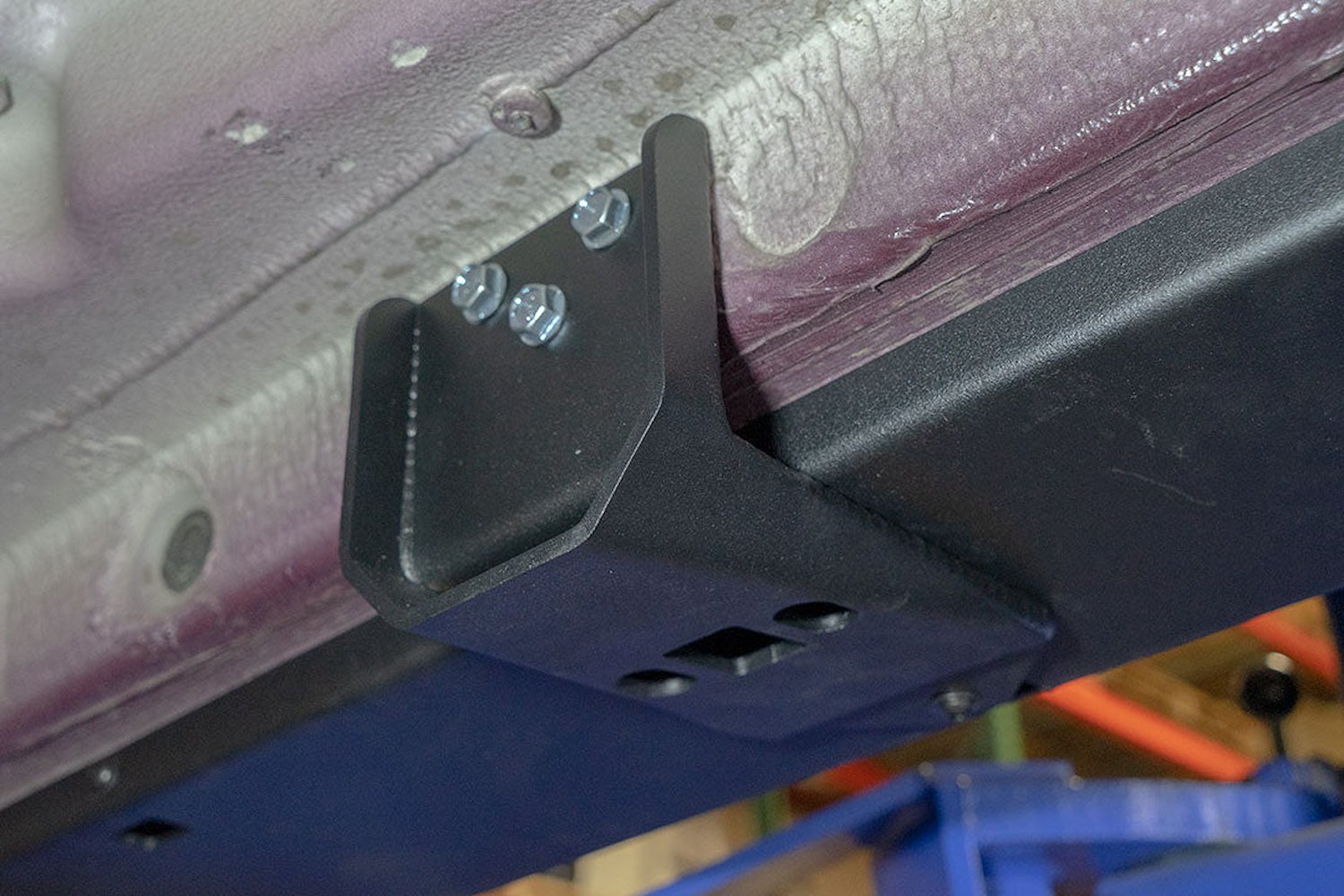

• Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis
• This robust design offers excellent body protection and adds easy to access vehicle lifting points
• More than just a step! Add functional protection, chassis rigidity and ease of access to your 144" wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards
• Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient
• This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle
• The main step surfaces are constructed from 1/8" steel and attach to the pin. seam with stainless steel hardware
• Attachment Type: Bolt On
• Color: Black
• Configuration: One Piece
• Cutting Required: No
• Drilling Required: Yes
• Material: Steel
• Paintable: Yes
• Recommended Shop Labor Time: 6 hr
• Removable: Yes
• Step Depth: 4 in.
• Universal Or Specific Fit: Specific
