Van Compass 7211-M Features:

Improve the ride quality and stance of your Ford Transit AWD with the Stage 1 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the AWD Transit platform.

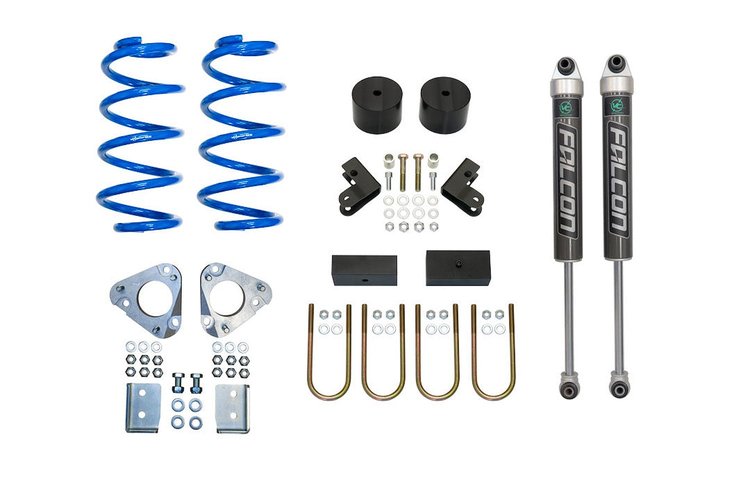

Our Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25" of lift, with a corresponding increase in compression travel. Rear lift at Stage 1 is accomplished by a 2" billet aluminum block and corresponding bump stop spacers to keep rear suspension geometry intact. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.

• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks
• Mid shock tune for vans weighing 7800-9100 lbs
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance
• Bushings Included: Yes
• Coil Spring Color: Blue
• Coils Quantity Front: 2
• Grade Type: Performance
• Leaf Spring Bracket Color: Black
• Leaf Spring Bracket Height: 2 in.
• Leaf Spring Bracket Thickness: 2 in.
• Maximum Lift: 2.0 in.
• Maximum Lift Front: 2 in.
• Maximum Lift Rear: 2 in.
• Mounting Hardware Included: Yes
• Recommended Shop Labor Time: 10 hr
• Shock Tune: Mid
• Shocks Included: Yes
• Spring Material: Steel
• Strut(s) Included: No
