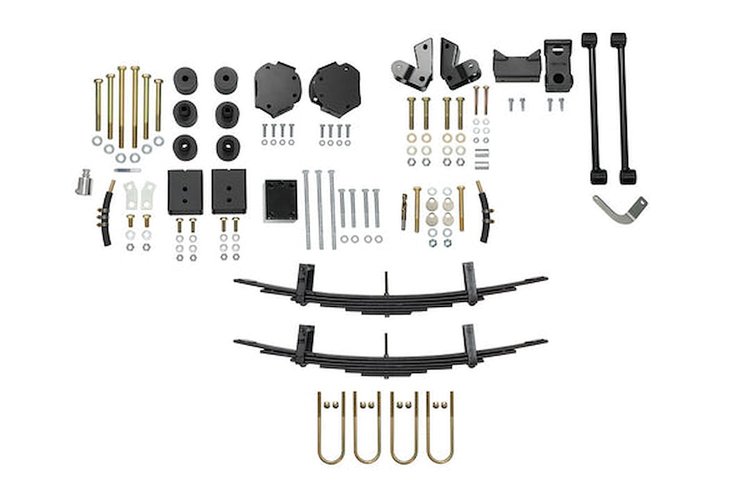

Van Compass 7219 Features:

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible. Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation. With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

• With proper wheel offset and fender trimming, fitment of a 35 x 12
• Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible
• 50 tire is possible, for a huge increase in traction and ground clearance
• At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation
• Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes
• The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability
• Bushings Included: No
• Grade Type: Regular
• Maximum Lift: 2.0 in.
• Maximum Lift Front: 2 in.
• Maximum Lift Rear: 2 in.
• Mounting Hardware Included: Yes
• Recommended Shop Labor Time: 13 hr
• Shocks Included: No
• Strut(s) Included: No
