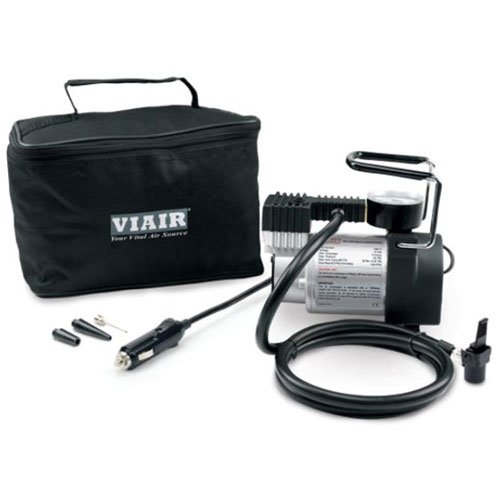

74P Portable Compressor Kit
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Items You Need
- 74P Portable Compressor Kit
- Vibration Isolators
- 3 pc. Inflation Tips Kit
- 150 PSI Gauge
- Accessory Power Plug
- 15-Amp Inline Fuse Holder
- Power Cord: 16 ft.
- Air Hose: 4 ft.
- Deluxe Carry Bag
- Press-On Tire Chuck
For Passenger Car Tires, 100 PSI / 1.27 CFM
The 70P is a smaller powerful portable compressor capable of inflating up to 225/60/R18 tires by simply plugging into your cigarette lighter power port, connecting to a valve stem and turning the unit on. Tire pressure can be monitored using the gauge mounted on top of the unit, by temporarily switching the unit off.The 74P is exactly the same compressor as the 70P but with a press-on chuck instead of a twist-on chuck.
Show More
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 30 min. @ 30 PSI
- Max. Working Pressure: 100 PSI
- Max. Amp Draw: 15 Amps
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -4°F
- Dimensions: 6.5"L x 3.6"W x 6.2"H
- Net Weight: 5.05 lbs.
- Please Note: Always check your vehicle's power port rating for maximum amperage before ordering. The 70P does not work with Presta bicycle valves.
View Dimensional Drawing - Click Here
View Compressor Fill Rate - Click Here
View Compressor Performance Data - Click Here
