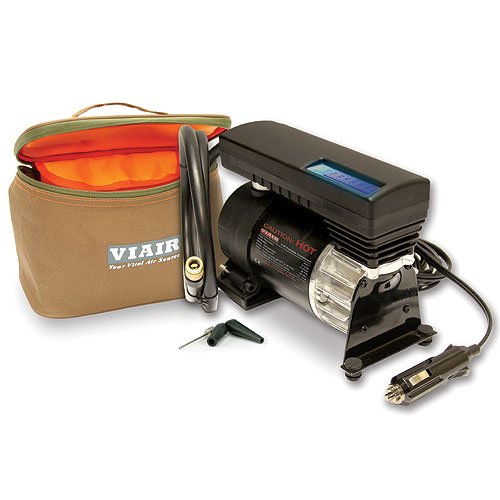

77P Portable Compressor Kit
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Items You Need
![Deluxe Tire Pressure Gauge [0-60 psi]](https://www.jegs.com/images/mini_200/500/555/555-65533.jpg)
JOES RACING PRODUCTS
Part Number : 514-32488
- 77P Portable Compressor Kit
- LED Work Light
- Illuminated Display
- Auto Shut-Off
- Vibration Isolators
- 3 pc. Inflation Kit
- 80 PSI Gauge
- Accessory Power Plug
- 15-amp Fuse
- Power Cord: 16.5 ft.
- Air Hose: 4 ft.
- Twist-On Chuck
For Passenger Car Tires, 80 PSI / 1.27 CFM
The 77P is a compact yet powerful portable compressor capable of inflating up to 225/60/R18 tires by simply plugging into your cigarette lighter power port, connecting to a valve stem and turning the unit on. Tire pressure can be monitored using the Illuminated Pressure Display on top of the unit. This compressor also comes equipped with an LED Work Light, and Deluxe Carry Bag with bright orange lining for enhanced visibility. The 78P is exactly the same compressor as the 77P but with a press-on chuck instead of a twist-on chuck.
Show More
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 30 mIn. @ 30 PSI
- Max. Working Pressure: 80 PSI
- Max. Amp Draw: 15 Amps
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -4°F
- Dimensions: 7.35"L x 3.6"W x 5.4"H
- Net Weight: 5 lbs.
- Please Note: Always check your vehicle's power port rating for maximum amperage before ordering. The 77P does not work with Presta bicycle valves.
View Dimensional Drawing - Click Here
View Compressor Fill Rate - Click Here
View Compressor Performance Data - Click Here
