2 Gallon Tank, 150 PSI / 2.68 CFM

Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.

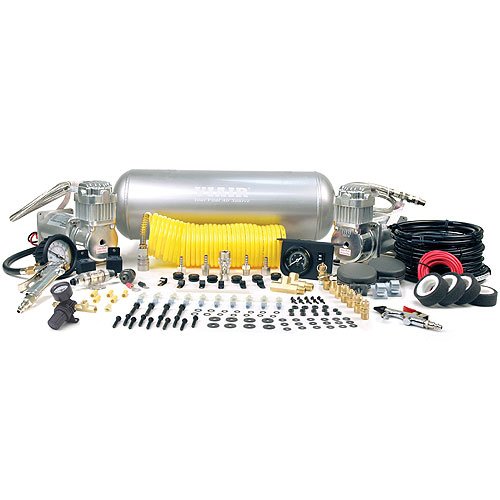

This X'treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two 350C, 100% duty cycle compressors, a 2.0-gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, air tools, managing air locking differentials, and more.

Features:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 40 Amps
• Ingress Protection Rating: IP67
• Please Note: Use thread sealant for proper installation.
• PTFE tape is not recommended. Properly sealed, recommended torque for 1/8" is 10-11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16-18 ft. lbs.



Also Includes:

• Tire Inflation Gun with 200 PSI Gauge
• 0-220 PSI Pressure Regulator
• Blow Gun Air Tool
• (2) 40-Amp Relays
• (2) T-Fittings (1/4" (M) x 1/4" (F) x 1/8" (F))
• 1/4" Quick Connect Stud (F)
• 1/4" Quick Connect Coupler (F)
• 1/4" 175 PSI Safety Valve
• 1/4" Tank Drain Valve
• (2) 1/8" BSP to 1/4" NPT
• (4) 1/4" Compression Fittings
• 4" Strip of Continuous Grommet Material
• Electrical Connections
• All Fittings are NPT rated unless otherwise noted

  View Dimensional Drawing - Click Here
  View Wiring Drawing - Click Here
  View Plumbing Drawing - Click Here
