100C Compressor Kit 130 PSI / 1.27 CFM

Name: 100C Compressor Kit 130 PSI / 1.27 CFM
Brand: VIAIR
SKU: 961-10010
Price: 173.25 USD
Availability: InStock

^$173²⁵

Ships on 09/11/2026

Lowest Price Guarantee

12V Compressor Kits

130 PSI / 1.27 CFM
12-Volt
Duty Cycle: 15% @ 100 PSI
Max. Working Pressure: 130 PSI
Max. Air Tank Size: 1.0 Gallon
Max. Amp Draw: 18 Amps
Ingress Protection Rating: IP54
6.35"L x 3.3"W x 4.9"H
3.55 lbs.

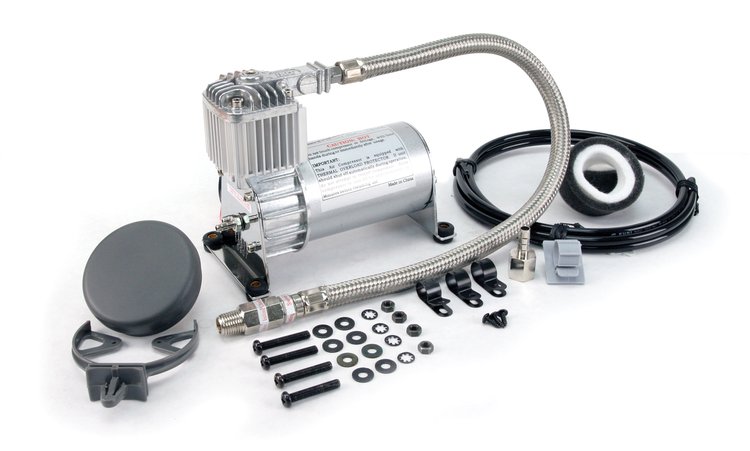

Viair's 100 Series comes with a 1.5 ft. stainless steel braided leader hose with 1/4' NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.
Included Parts:
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
View Compressor Fill Rate - Click Here
View Compressor Performance Data - Click Here
