Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

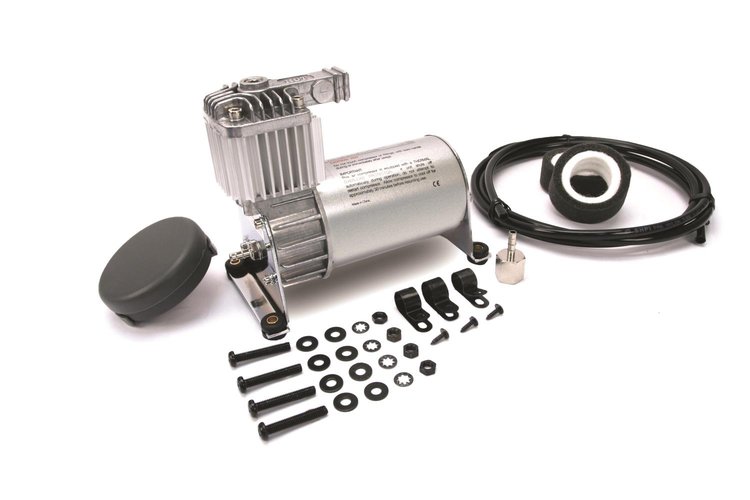

12V Compressor Kits
- 100C Compressor Kit
- 130 PSI / 1.27 CFM
- 12-Volt
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- 6.35"L x 3.3"W x 4.9"H
- 3.55 lbs.
Viair's 100 Series comes with a remote mount air filter assembly, rubber isolated mounting feet as well as insulated electric terminals. This compressor is the same as p/n 961-10010 but does NOT include the leader hose or check valve.
Included Parts: - Vibration Isolators
- Mounting Hardware
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
- Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Part TypeAir Compressor
BrandVIAIR
Package Height6.0
Package Width7.4
Package Length8.6
Weight3.82 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number10014
Package Qty1
Package TypeEA
