Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
12V Compressor Kits

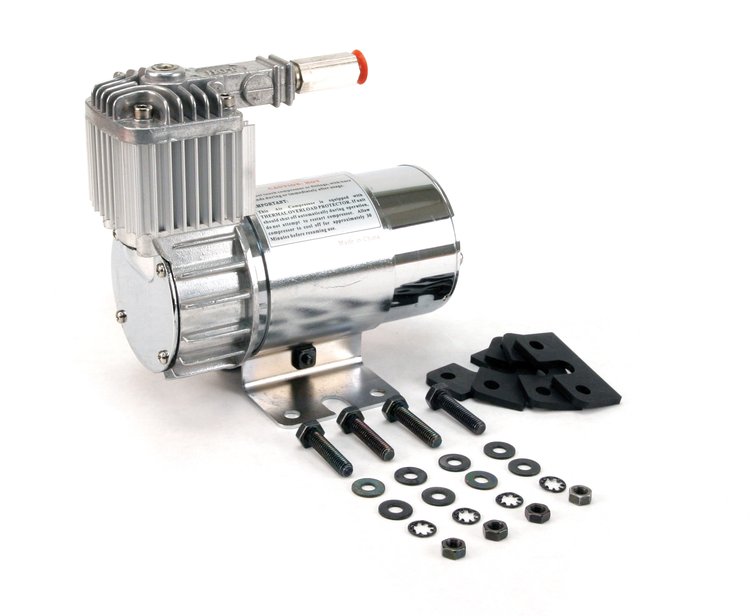

- 100C Compressor Kit
- 130 PSI / 1.27 CFM
- 12-Volt
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- 6.0"L x 3.5"W x 5.3"H
- 3.45 lbs.
Viair's 100 Series with omega-style bracket is a bare compressor that comes standard with a chrome motor housing and chrome end plates. Insulated wiring is pre-installed. This compressor does not come equipped with a leader hose but does come with an inline check valve.
Included Parts: - Omega Bracket
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Installation Instructions
- Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Compressors Built Strong to Work Hard
Viairs quality-engineered C model compressors have become the industry standard for both 12 and 24-volt compressors in withstanding the harshest environments in the automotive industry
Part TypeAir Compressor
Product LineViair C-model Compressors
BrandVIAIR
Package Height5.4
Package Width7.5
Package Length8.2
Weight3.94 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number10016
Package Qty1
Package TypeEA
