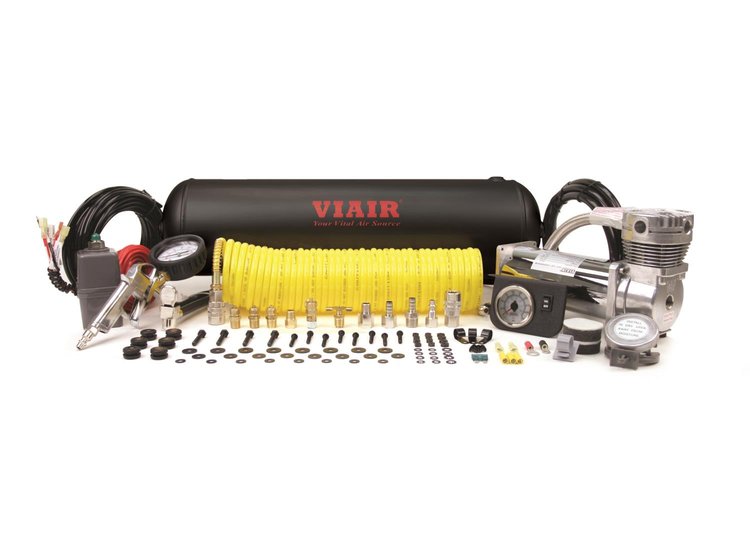

Vehicle Info NeededUltra Duty Onboard Air System 2.5 Gallon 200 PSI Air Tank
Ships Tomorrow
Lowest Price Guarantee- Ultra Duty Onboard Air System
- 2.5 Gallon 200 PSI Air Tank
- 480C Chrome Air Compressor
- Tire Inflation Gun w/200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 30ft. Coil Hose w/Quick Connects
- Pressure Switch (165 PSI on, 200 PSI off)
Also Includes: - Reducer: 1/8" (F) to 1/4" (M)
- Reducer: 3/8" (F) to 1/4" (M)
- 1/4" Quick Connect Stud (F)
- 1/4" Quick Connect Coupler (F)
- 1/4" 250 PSI Safety Valve
- 1/4" Tank Drain Valve
- (3) 1/4" Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4" Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections
- All Fittings are NPT rated unless otherwise noted
2-1/2 Gallon Tank, 150 PSI / 1.66 CFM
Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.
Show More
This Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size. This system is ideal for tire inflation and use with air tools.
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 20 Amps
- Ingress Protection Rating: IP67
- Please Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque for 1/8" is 10-11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16-18 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
View Plumbing Drawing - Click Here
