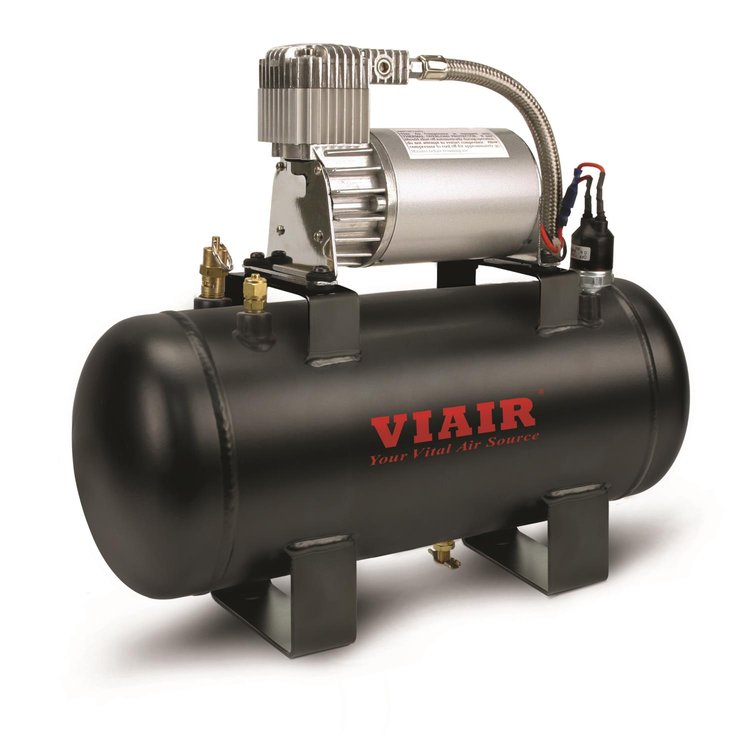

Vehicle Info Needed120 PSI Fast-Fill Air Source Kit 275C Pewter Air Compressor
Ships on Nov 02, 2026
Lowest Price Guarantee- 120 PSI Fast-Fill Air Source Kit
- 275C Pewter Air Compressor
- 1.5 Gallon Air Tank
- Pressure Switch (90 PSI On / 120 PSI Off)
- Safety Valve (145 PSI)
- Tank Drain Valve
- Leader Hose with Check Valve
1-1/2 Gallon Tank, 120 PSI / 2.03 CFM
Air Source Kits provide an all-in-one air source solution in one of four different part numbers, meant specifically for air horns and other moderate pneumatic needs. Air Source kits are equipped with a 150 PSI or 200 PSI-rated compressor mounted atop the air tank and are equipped with a drain valve, properly rated safety valve, appropriately rated pressure switch, and a 1/2-inch NPT outlet port with compression fitting that is 3/8-inch air line-ready, all factory installed.
Show More
The 120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20003 / 90-120 PSI). The 120 PSI Air Source Kit comes complete with a 1/4" NPT brass drain cock, 1/4" NPT ASME coded and certified safety valve, 1/2" NPT port compression fitting for 3/8" air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 25% @ 100 PSI
- Max. Working Pressure: 120 PSI
- Max. Amp Draw: 20 Amps
- Ingress Protection Rating: IP54
- Dimensions: 15.2"L x 5.9"W x 12.8"H
- Net Weight: 15.65 lbs.
