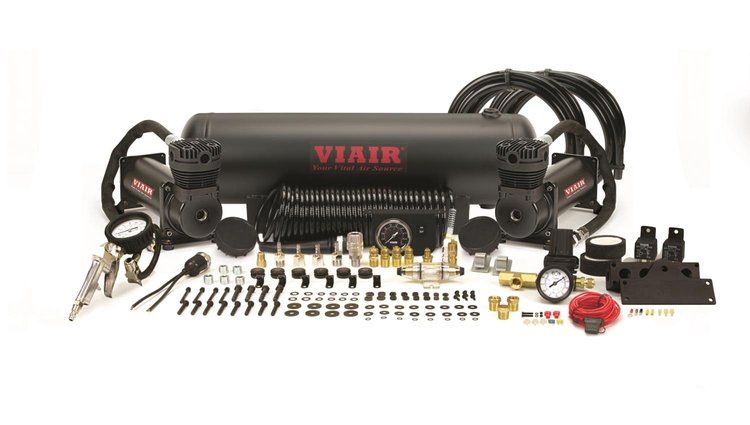

Dual 480C Onboard Air System is a pre-packaged compressed air solution that provides two 480C, 100% duty cycle compressors, a 2.5-gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, air tools, managing air locking differentials, and more pneumatic applications.

Features:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 40 Amps
• Ingress Protection Rating: IP67
• Tank Size: 2.5 Gallon, 200 PSI
• Please Note: Use thread sealant for proper installation.
• PTFE tape is not recommended. Properly sealed, recommended torque for 1/8" is 10-11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16-18 ft. lbs.



Also Includes:

• Tire Inflation Gun with 200 PSI Gauge
• 0-220 PSI Pressure Regulator
• Blow Gun Air Tool
• (2) 40-Amp Relays
• 60-Amp Inline Fuse Holder
• Sealed Pressure Switch (165 PSI On, 200 PSI Off)
• 1/4 in. Drain Cock
• 1/4 in. Male Quick Connect Coupler
• 1/4 in. 250 PSI Safety Valve
• (4) 1/4 in. Compression Fittings
• 6-Port Billet Manifold w/ Mounting Bracket (1/4 in.)
• (2) 20 ft. 1/4 in. Air Line Included
• (5) 1/4 in. NPT Plugs
• 30 ft. Extension Coil Hose
• Electrical Connections
• All Fittings are NPT rated unless otherwise noted

  View Dimensional Drawing - Click Here
  View Wiring Drawing - Click Here
  View Plumbing Drawing - Click Here
