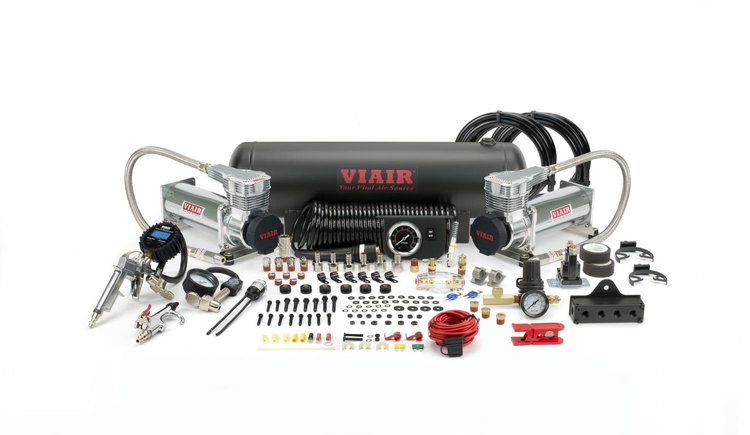

485C Gen 2 Onboard Air System is a pre-packaged compressed air solution that provides two 485C, 100% duty cycle compressors, a 2.5-gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, air tools, managing air locking differentials, and more pneumatic applications.

Features:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 44 Amps
• Ingress Protection Rating: IP67
• Tank Size: 2.5 Gallon, 200 PSI
• 2.5 Gallon 0-200 PSI Fill Rate 2 min. 20 sec.
• 2.5 Gallon 165-200 PSI Fill Rate 35 sec.
• lease Note: Use thread sealant for proper installation.
• PTFE tape is not recommended. Properly sealed, recommended torque for 1/8 in. is 10-11 ft. lbs. Recommended torque for 1/4 in. and 3/8 in. is 16-18 ft. lbs.

Also Includes:

• (2) Air Filter Assemblies
• (2) Viair Removable Filter Covers
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (2) Leader Hose Clips
• (6) Air Line Clips w/Hardware
• (2) 40-Amp Relays
• Heavy Duty 60-Amp Inline Fuse Holder
• Sealed Pressure Switch (165 PSI On, 200 PSI Off)
• (2) Stainless Steel Braided Leader Hoses w/Inline Check Valve
• Air Line for Remote Mount Filter

  View Dimensional Drawing - Click Here
  View Wiring Drawing - Click Here
  View Plumbing Drawing - Click Here
