280C Dual Performance Air Compressor Value Pack Heavy Duty 40-Amp Relays

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Heavy Duty 40-Amp Relays
One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
Stainless Steel Braided Leader Hoses with Inline Check Valve
Black on Silver Finish

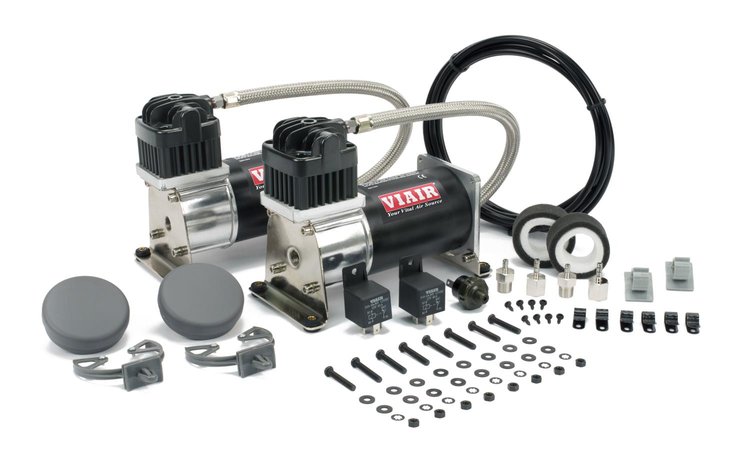

Included Parts:
(2) 280C (Black on Silver) Air Compressors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

Rated to Fill Tank Volumes up to 5 Gallon,
150 PSI / 2.96 CFM

The VIAIR 280C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Features:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 30% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 33 Amps
Ingress Protection Rating: IP54
Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
Net Weight: 17.50 lbs.
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
