2on2 Bolt-On Platform High-Speed Onboard Air System Jeep JK 2007-11
Product Discontinued
VIAIRPART NUMBER: 961-30001

2on2 Bolt-On Platform High-Speed Onboard Air System Jeep JK 2007-11

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

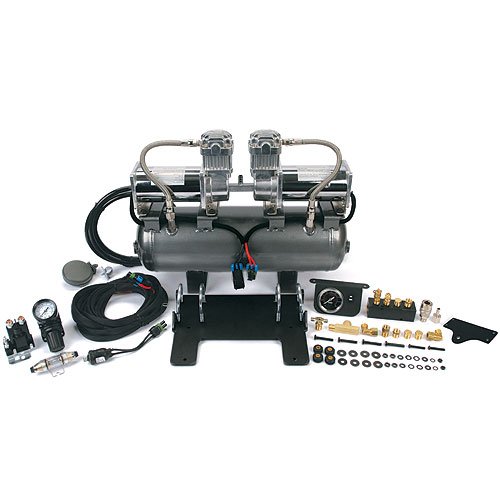

    2on2 Bolt-On Platform High-Speed Onboard Air System
  • Jeep JK 2007-11
  • 2.0 Gallon 5-Port Air Tank
  • Two 400C Air Compressors

    2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.

    Pre-installed:
  • 2.0 Gallon 5-Port Air Tank
  • (2) 400C Air Compressors
  • (2) 1/4" Stainless Steel Braided Leader Hoses
  • (2) 1/4" JIC Fittings on Leader Hoses
  • 1/4" NPT Swivel to 1/4" NPT Swivel
  • T-Fitting (Remote Mount Filter)
  • 1/4" NPT Drain Valve
  • Sealed Pressure Switch with Delphi Connectors (110 PSI On, 145 PSI Off)
  • (2) Loomed Compressor Wires Terminated with Delphi Connectors
  • Inline Fuse Holder with Fuse
  • 1/4" NPT Safety Valve
  • (4) 1/4" NPT M Recessed Plugs

    Also Includes:
  • Crossmember Mounting Bracket
  • 60-amp Fuse & Fuse Holder
  • 80-amp Relay
  • (2) 1/4" BSP Adapters for Air Lockers
  • T-Fitting 1/4" NPT F x 1/4" NPT F x 1/4" NPT M
  • 1/8" to 1/4" NPT Reducer
  • Wiring Harness with Delphi Connectors
  • (2) Delphi Connector Plug Kits
  • Billet 1/4" NPT x 6-Port Manifold and Mounting Bracket
  • Air Filter Housing with Installed Element
  • (2) Replacement Air Filter Elements
  • Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
  • Air Pressure Regulator
  • 15 ft. D.O.T. Air Line

2 Gallon Tank, 150 PSI / 4.55 CFM

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket - 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward. Includes components needed to install a working system capable of inflating tires, air tools, managing air locking differentials, and more.

Show More

Features:

Part TypeAir Compressor
Product LineViair Jeep JK 2on2 Bolt-On Platform High-Speed Onboard Air System
BrandVIAIR
Package Height11.0
Package Width17.0
Package Length22.0
Weight45.0 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number30001
Package Qty1
Package TypeEA
