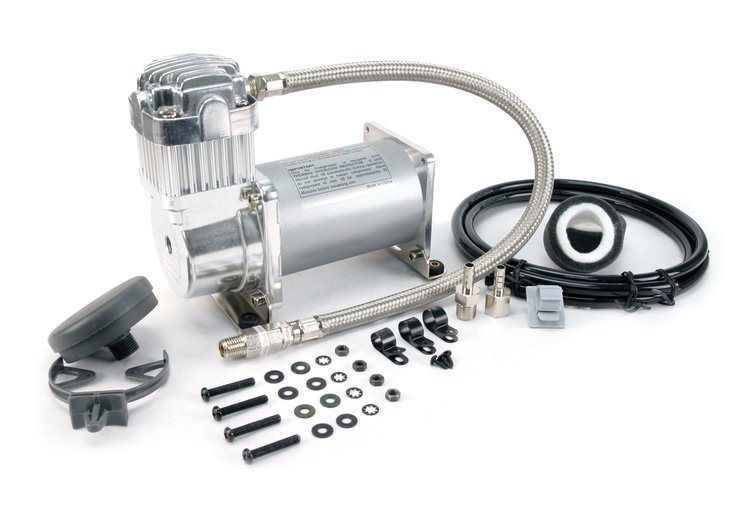

12V Compressor Kits
- 325C Compressor Kit
- 150 PSI / 1.38 CFM
- 12-Volt
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- 8"L x 4"W x 6.75"H
- 7.5 lbs.
325C - 12V & 24V are compressors that work with low amp draw. Features include a standard 1/4" NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.
Included Parts: - Check Valve
- Mounting Hardware
- Vibration Isolators
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
- Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Part TypeAir Compressor
BrandVIAIR
Package Height7.0
Package Width9.2
Package Length10.6
Weight8.25 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number32530
Package Qty1
Package TypeEA
