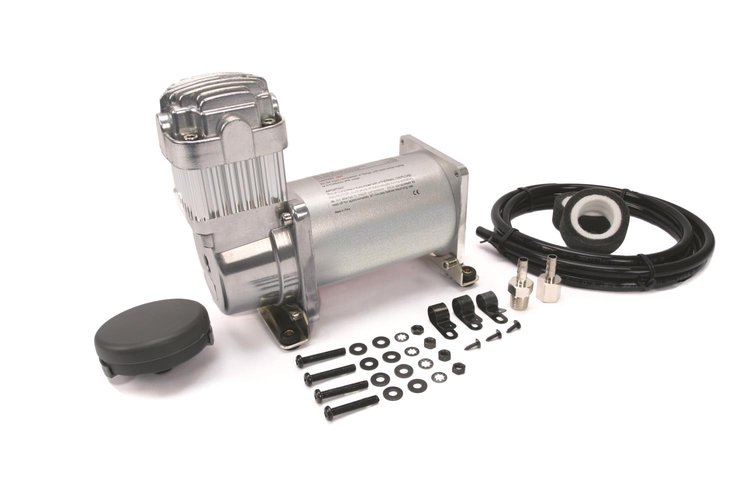

325C Compressor 150 PSI / 1.38 CFM

Name: 325C Compressor 150 PSI / 1.38 CFM
Brand: VIAIR
SKU: 961-32534
Price: 264.44 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

12V Compressor Kits

150 PSI / 1.38 CFM
12-Volt
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
8"L x 4"W x 6.75"H
7.5 lbs.

The 325C-12V compressor works with low amp draw. Features include an air line for remote mount air filter installation, vibration isolators and insulated wiring for simple installation. This compressor does NOT include leader hose or check valve.
Included Parts:
1/4" NPT Intake Port
Mounting Hardware
Vibration Isolators
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here

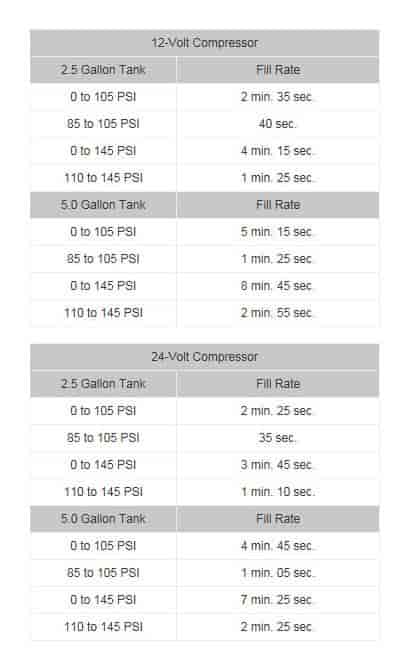

View Compressor Fill Rate - Click Here

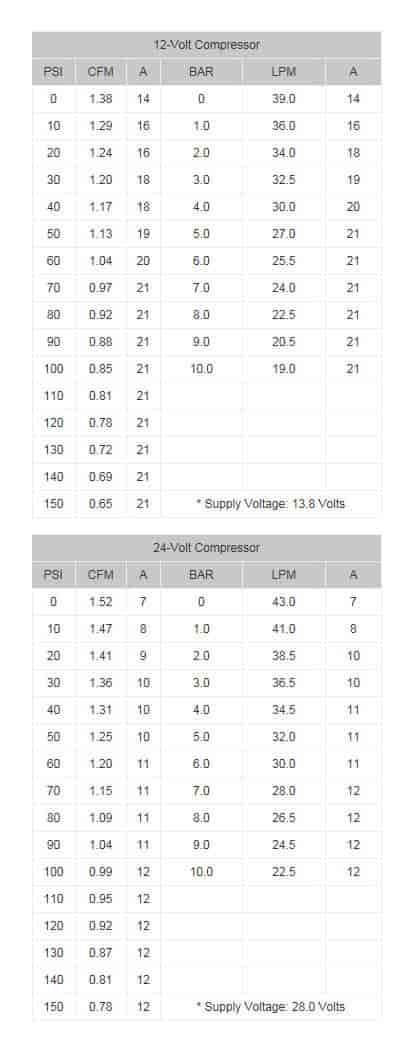

View Compressor Performance Data - Click Here
