325C Compressor Kit 150 PSI / 1.52 CFM

Name: 325C Compressor Kit 150 PSI / 1.52 CFM
Brand: VIAIR
SKU: 961-32538
Price: 296.18 USD
Availability: InStock

^$296¹⁸

Ships on 09/08/2026

Lowest Price Guarantee

24V Compressor Kits

150 PSI / 1.52 CFM
24-Volt
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 13 Amps
Ingress Protection Rating: IP67
8"L x 4"W x 6.75"H
7.5 lbs.

325C - 12V & 24V are compressors that work with low amp draw. Features include a standard 1/4" NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.

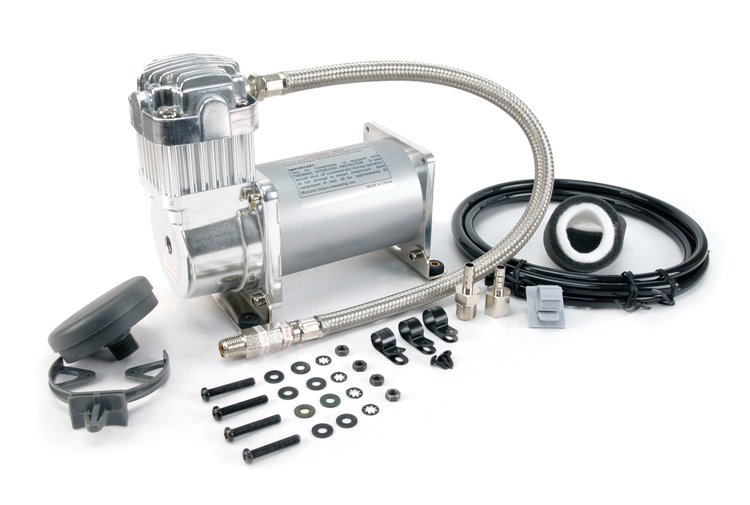

Included Parts:
Check Valve
Mounting Hardware
Vibration Isolators
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
View Compressor Fill Rate - Click Here
View Compressor Performance Data - Click Here
