This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

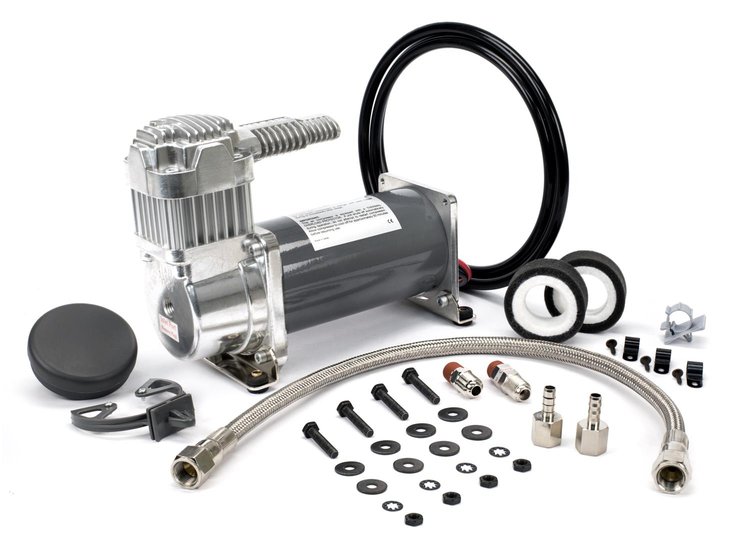

- 330C-IG Compressor Kit
- 150 PSI / 1.16 CFM
- 24-Volt
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 9 Amps
- Ingress Protection Rating: IP67
- 9"L x 4"W x 6.75"H
- 8.25 lbs.
Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.
Included Parts: - Vibration Isolators
- Mounting Hardware
- Heavy Duty 1/4" NPT Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Convenient Compressed Air with Industrial Strength Capacity
All Industrial Grade (IG) compressors fill air reservoir tanks and contain a specific head assembly with a newly redesigned, patent-pending intercooler for increased heat dissipation. All IG compressors feature outstanding sealing properties to the elements for improved performance and longevity. Each compressor requires the use of a pressure switch/relay that allows operation up to each compressor's maximum working pressure.
