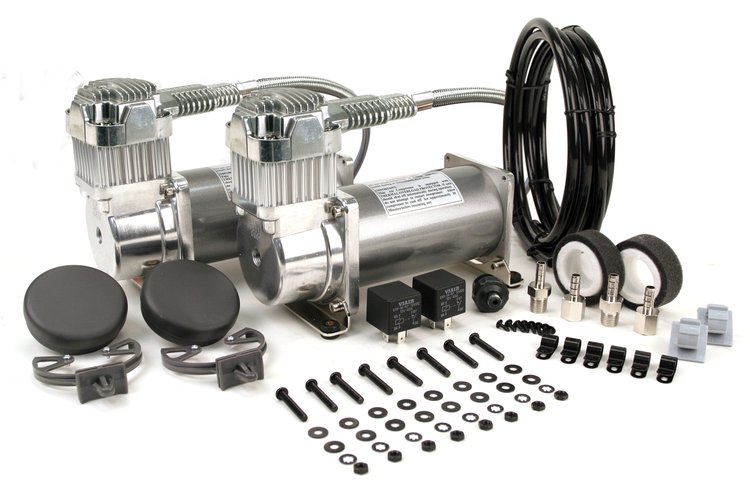

380C Dual Performance Air Compressor Value Pack Heavy Duty 40-Amp Relays

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Heavy Duty 40-Amp Relays
One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
Stainless Steel Braided Leader Hoses with Inline Check Valve
Pewter Finish

Included Parts:
(2) 380C Compressors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) Heavy Duty 40-Amp Relays
(1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

Rated to Fill Tank Volumes up to 10 Gallon,
200 PSI / 2.54 CFM

The 380C Dual Performance Value Packs include two 380C compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware. Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons.

Features:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Max. Amp Draw: 44 Amps
Ingress Protection Rating: IP67
Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
Net Weight: 17.50 lbs.
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
