400C Compressor Kit 150 PSI / 2.54 CFM

Name: 400C Compressor Kit 150 PSI / 2.54 CFM
Brand: VIAIR
SKU: 961-40040
Price: 275.80 USD
Availability: InStock

^$275⁸⁰

Ships on 09/08/2026

Lowest Price Guarantee

12V Compressor Kits

150 PSI / 2.54 CFM
12-Volt
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. Amp Draw: 32 Amps
Ingress Protection Rating: IP67
9"L x 4"W x 6.75"H
8.65 lbs.

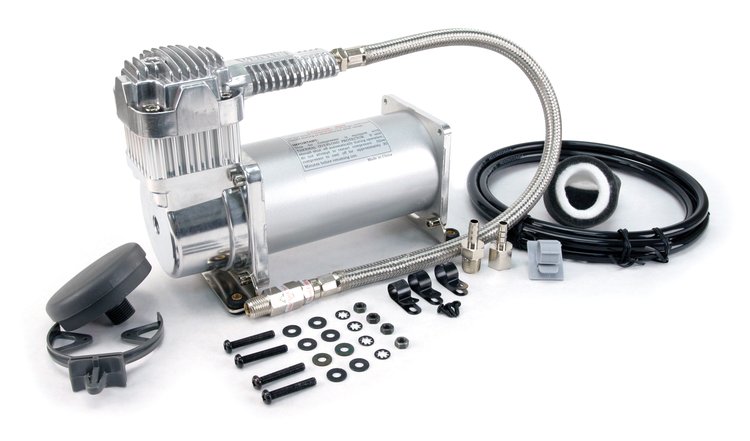

400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at zero PSI head pressure. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Included Parts:
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
View Compressor Fill Rate - Click Here
View Compressor Performance Data - Click Here

Compressors Built Strong to Work Hard

Viairs quality-engineered C model compressors have become the industry standard for both 12 and 24-volt compressors in withstanding the harshest environments in the automotive industry

Part TypeAir Compressor

Product LineViair C-model Compressors

BrandVIAIR

Package Height7.1

Package Width9.4

Package Length12.0

Weight9.69 PG

Part CategoryAccessories

Part FitmentUniversal

Vendor Part Number40040

Package Qty1

Package TypeEA
