Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

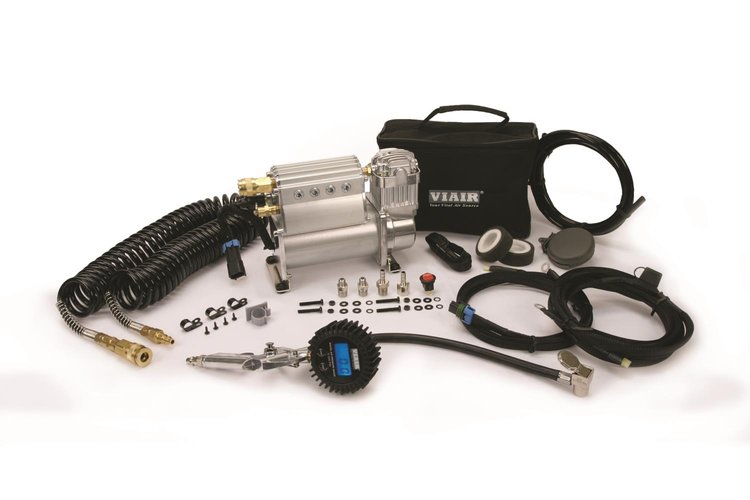

- Automatic Deployment Air Systems
- Heavy Duty Universal
- 400C Compressor
- Extruded Aluminum Air Tank with 12-ports
Included Parts: - Toggle Switch
- Air Line for Remote Mount Air Filter Installation
- (2) Remote Mount Air Filter Relocation Fittings
- 1/8" NPT Drain Cock
- 1/4" NPT Safety Valve
- (8) 1/4" NPT Hex Plug
- 1/4" NPT Sealed Pressure Switch (85/105 PSI)
- (2) 1/4" NPT BSP Adapter
- 1/4" NPT Automatic Coupler Digital Tire Inflation Kit:
- 30 ft. Inflation Hose with Automatic Couplers
- Digital Tire Inflation GunWiring Harness:
- 30-amp Delphi Connector Set
- 60-amp Fuse Holder
- 40-amp Fuse
- (2) 1/4" Ring Terminal
- 5/16" Ring Terminal
- (3) Female Spade Terminal Connector
12 Port Air Tank, 150 PSI / 2.54 CFM
Using a 33% (Heavy Duty) duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.
Show More
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 32 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H
- Net Weight: 10 lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Part TypeAir Compressor
Product LineViair Automatic Deployment Air Systems - Heavy Duty Universal
BrandVIAIR
Package Height10.0
Package Width13.0
Package Length15.0
Weight17.0 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number40049
Package Qty1
Package TypeEA
