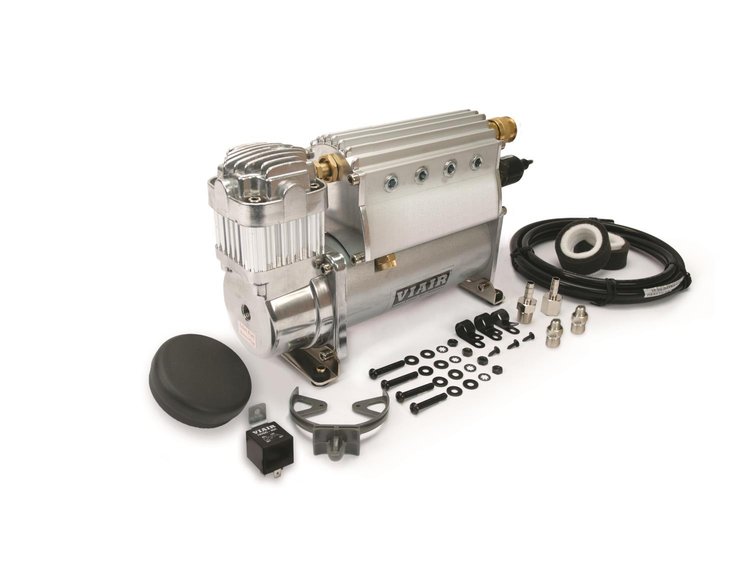

Automatic Deployment Air Systems Heavy Duty Base Model

Name: Automatic Deployment Air Systems Heavy Duty Base Model
Brand: VIAIR
SKU: 961-42045
Price: 414.75 USD
Availability: InStock

^$414⁷⁵

Ships on 11/03/2026

Lowest Price Guarantee

Heavy Duty Base Model
400C Compressor
Extruded Aluminum Air Tank with 12-ports
85/105 PSI
Should Not Be Used for Load Leveling

Note: This system (P/N 42045) should not be used for Load Leveling.
Included Parts:
Pre-installed Safety Valve
Pre-installed 1/8" NPT Drain Valve
Pre-installed Safety Valve
Pre-installed 85/105 PSI Pressure Switch
(8) Pre-installed 1/4" NPT Recessed Port Plugs
Pre-installed Quick Connect Coupler
40-amp Relay
(2) 1/4" NPT to 1/8" BSP Adapters
1" NPT M Barbed Fitting for 1/4" Air Line
1" NPT F Barbed Fitting for 1/4" Air Line
Coiled Air Line (For Remote Mount Air Filter Installation)
Air Filter Housing
(2) Replacement Air Filter Elements
Mounting Hardware

12 Port Air Tank, 150 PSI / 2.54 CFM

Viair offers an Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. Viair ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 400C (Heavy Duty) compressor at its core.

Features:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI

Max. Working Pressure: 150 PSI
Max. Amp Draw: 32 Amps
Ingress Protection Rating: IP67
Dimensions: 9"L x 4"W x 6.75"H
Net Weight: 10 lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here

Part TypeAir Compressor

Product LineViair Automatic Deployment Air Systems - Heavy Duty Base Model

BrandVIAIR

Package Height7.0

Package Width8.0

Package Length13.0

Weight12.0 PG

Part CategoryAccessories

Part FitmentUniversal

Vendor Part Number42045

Package Qty1

Package TypeEA
