VIAIRPART NUMBER: 961-45040

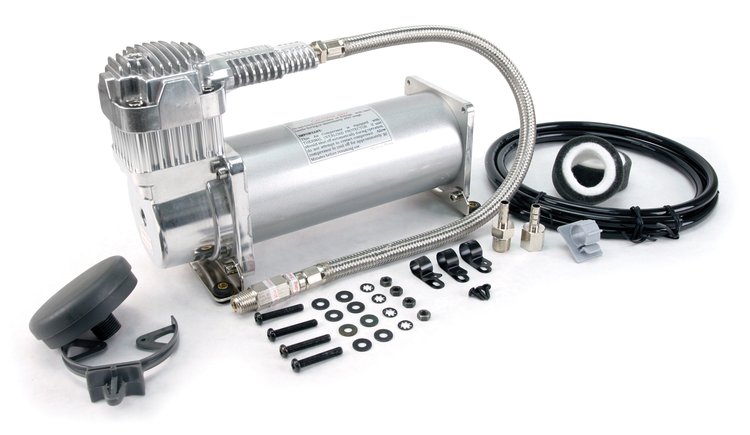

450C Compressor Kit 150 PSI / 1.66 CFM
$41599
Items You Need
12V Compressor Kits
- 450C Compressor Kit
- 150 PSI / 1.66 CFM
- 12-Volt
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- 10.6"L x 4"W x 6.87"H
- 10.80 lbs.
450C is a continuous duty cycle compressor. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Included Parts: - Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
- Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Compressors Built Strong to Work Hard
Viairs quality-engineered C model compressors have become the industry standard for both 12 and 24-volt compressors in withstanding the harshest environments in the automotive industry
Part TypeAir Compressor
Product LineViair C-model Compressors
BrandVIAIR
Package Height7.0
Package Width9.0
Package Length13.0
Weight11.77 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number45040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
