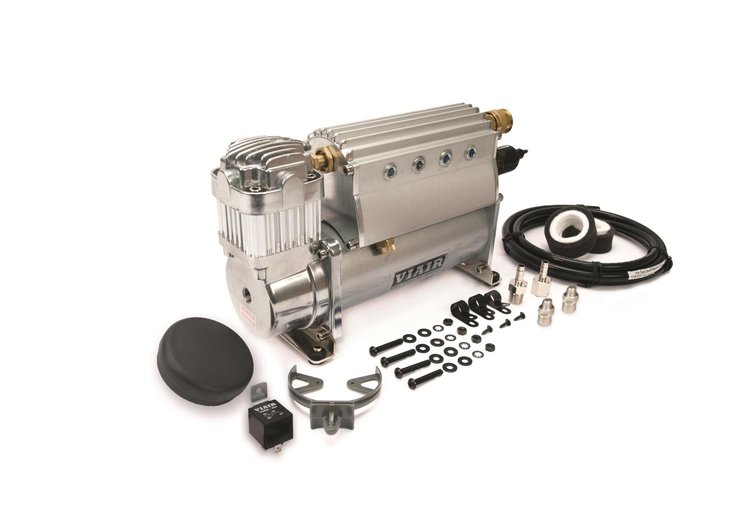

Automatic Deployment Air Systems Constant Duty Base Model

Name: Automatic Deployment Air Systems Constant Duty Base Model
Brand: VIAIR
SKU: 961-45054
Price: 475.50 USD
Availability: InStock

^$475⁵⁰

Ships on 09/04/2026

Lowest Price Guarantee

Constant Duty Base Model
450C Compressor
Extruded Aluminum Air Tank with 12-ports
110/145 PSI
Should Not Be Used for Air Lockers

Note: This system (P/N 45054) should not be used for Air Lockers.
Included Parts:
Pre-installed Safety Valve
Pre-installed 1/8" NPT Drain Cock
Pre-installed Safety Valve
Pre-installed 85/105 PSI Pressure Switch
(8) Pre-installed 1/4" NPT Recessed Port Plugs
Pre-installed Quick Connect Coupler
40-amp Relay
(2) 1/4" NPT to 1/8" BSP Adapters
1" NPT M Barbed Fitting for 1/4" Air Line
1" NPT F Barbed Fitting for 1/4" Air Line
Coiled Air Line (For Remote Mount Air Filter Installation)
Air Filter Housing
(2) Replacement Air Filter Elements
Mounting Hardware

12 Port Air Tank, 150 PSI / 1.66 CFM

Viair offers an Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 450C (Constant Duty) compressor at its core.

Features:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 9.38"L x 4"W x 6.75"H
Net Weight: 12.5 lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
