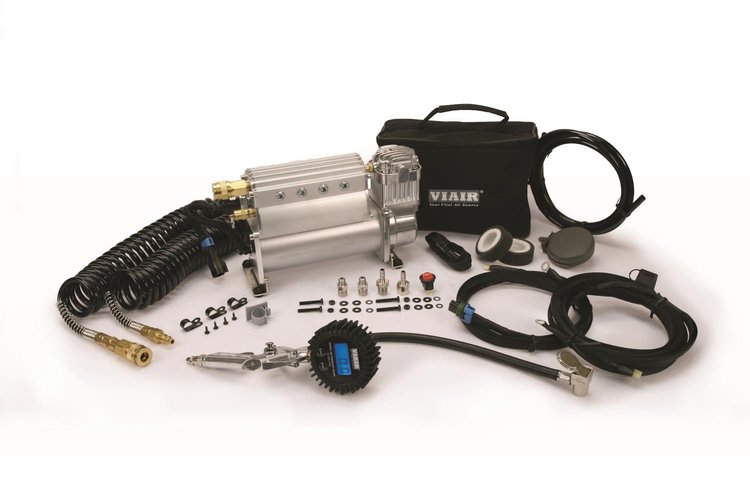

Automatic Deployment Air Systems Constant Duty Universal

Name: Automatic Deployment Air Systems Constant Duty Universal
Brand: VIAIR
SKU: 961-45055
Price: 562.89 USD
Availability: InStock

^$562⁸⁹

Ships on 09/04/2026

Lowest Price Guarantee

Constant Duty Universal
450C Compressor
Extruded Aluminum Air Tank with 12-ports

Included Parts:
Toggle Switch
Air Line for Remote Mount Air Filter Installation
(2) Remote Mount Air Filter Relocation Fittings
1/8" NPT Drain Cock
1/4" NPT Safety Valve
(8) 1/4" NPT Hex Plug
1/4" NPT Sealed Pressure Switch (85/105 PSI)
(2) 1/4" NPT BSP Adapter
1/4" NPT Automatic Coupler
Digital Tire Inflation Kit:
30 ft. Inflation Hose with Automatic Couplers
Digital Tire Inflation Gun
Wiring Harness:
30-amp Delphi Connector Set
60-amp Fuse Holder
40-amp Fuse
(2) 1/4" Ring Terminal
5/16" Ring Terminal
(3) Female Spade Terminal Connector

12 Port Air Tank, 150 PSI / 1.66 CFM

Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

Features:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 9.38"L x 4"W x 6.75"H
Net Weight: 12.5 lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
