480C Dual Performance Air Compressor Value Pack Heavy Duty 40-Amp Relays
InfoVehicle Info Needed
VIAIRPART NUMBER: 961-48012

480C Dual Performance Air Compressor Value Pack Heavy Duty 40-Amp Relays

$51195
ShippingShips on 11/30/2026
Lowest PriceLowest Price Guarantee

Items You Need

Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00
Standard Digital Tire Gauge 10" Hose

JEGS

Standard Digital Tire Gauge 10" Hose

Part Number : 555-65036
$3699$47.99
You Save$11.00
Quick Fill Tire Inflator Includes 60 PSI Digital Gauge

JOES RACING PRODUCTS

Quick Fill Tire Inflator Includes 60 PSI Digital Gauge

Part Number : 514-32488
$11095
Tire Deflator

TERAFLEX

Tire Deflator

Part Number : 446-4807200
$1899

    480C Dual Performance Air Compressor Value Pack
  • Heavy Duty 40-Amp Relays
  • One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Pewter Finish

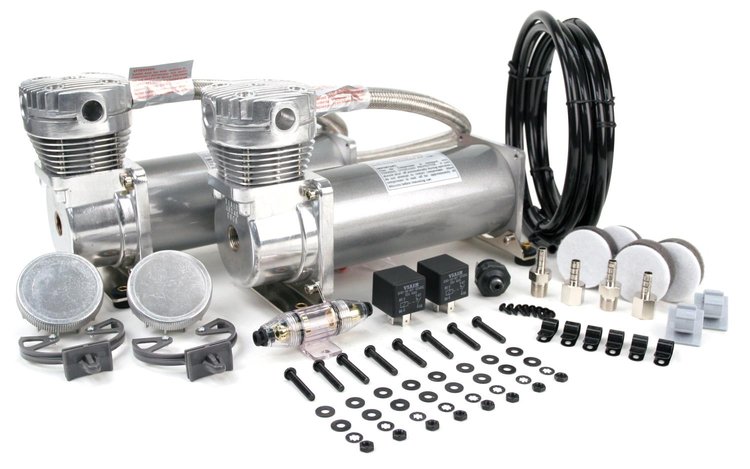

    Included Parts:
  • (2) 480C Compressors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
  • (2) Heavy Duty 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

Rated to Fill Tank Volumes up to 10 Gallon,
200 PSI / 3.53 CFM

The 480C Dual Performance Value Packs include two 480C compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware. Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons.

Show More

Features:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Max. Amp Draw: 44 Amps
  • Ingress Protection Rating: IP67
  • Dimensions: 10.87"L x 4.2"W x 6.75"H (Each Unit)
  • Net Weight: 22.10 lbs.
  • Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    View Dimensional Drawing - Click Here
    View Wiring Drawing - Click Here

Part TypeAir Compressor
Product LineViair 480C Dual Performance Air Compressor Systems
BrandVIAIR
Package Height10.0
Package Width14.0
Package Length14.0
Weight26.0 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number48012
Package Qty1
Package TypeEA
