Vehicle Info NeededVIAIRPART NUMBER: 961-48043

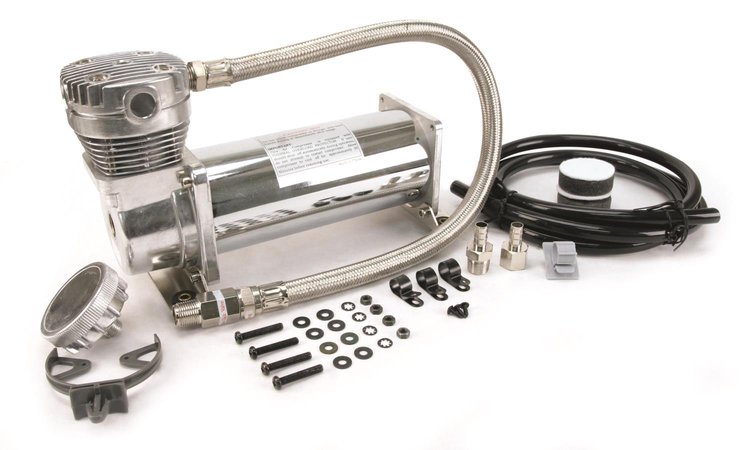

480C Compressor Kit 200 PSI / 1.76 CFM
$45525
4 left in stock
Ships Today
Lowest Price GuaranteeItems You Need
12V Compressor Kits
- 480C Compressor Kit
- 200 PSI / 1.76 CFM
- 12-Volt
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- 10.87"L x 4.2"W x 6.75"H
- 11.05 lbs.
480C is a truly rated, 200 PSI-rated compressor. The duty cycle of this compressor is 100% @ 100 PSI or 50% @ 200 PSI. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8" stainless steel braided leader hose with 3/8" NPT inline check valve and insulated wiring.
Included Parts: - Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
- Note: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
View Dimensional Drawing - Click Here
View Wiring Drawing - Click Here
Compressors Built Strong to Work Hard
Viairs quality-engineered C model compressors have become the industry standard for both 12 and 24-volt compressors in withstanding the harshest environments in the automotive industry
Part TypeAir Compressor
Product LineViair C-model Compressors
BrandVIAIR
Package Height7.2
Package Width9.3
Package Length13.6
Weight12.47 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number48043
Package Qty1
Package TypeEA
